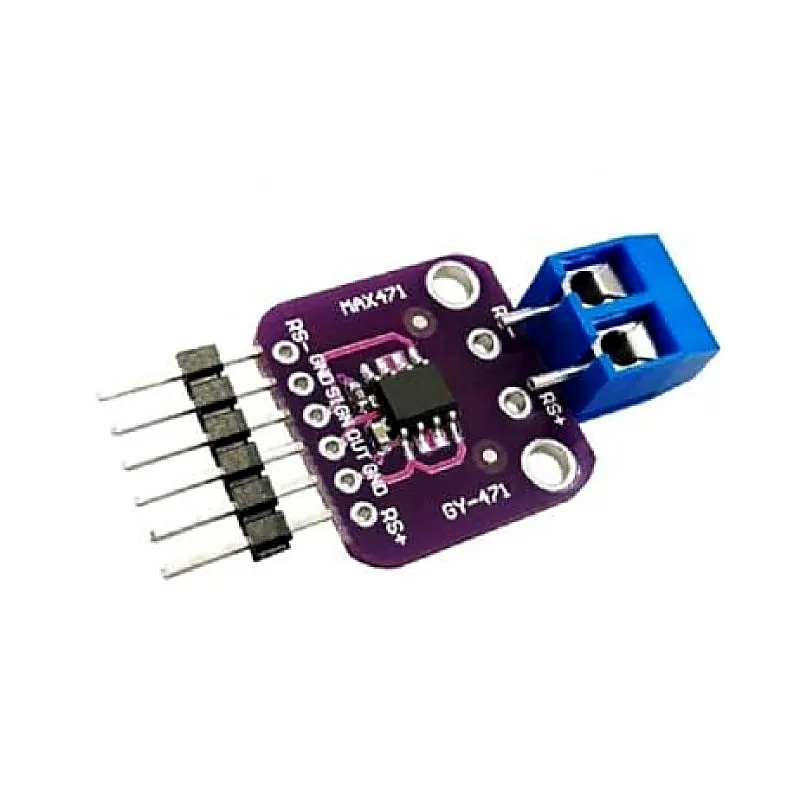

Unsoldered GY-471 3A Range MAX471 Current Sensor Module

The MAX471/MAX472 are complete, bidirectional, highside current-sense amplifiers for portable PCs, telephones, and other systems where battery/DC power-line monitoring is critical. High-side power-line monitoring is especially useful in battery-powered systems since it does not interfere with the ground paths of the battery chargers or monitors often found in smart batteries. The MAX471 has an internal 35m current-sense resistor and measures battery currents up to 3A. For applications requiring higher current or increased flexibility, the MAX472 functions with external sense and gain-setting resistors. Both devices have a current output that can be converted to a ground-referred voltage with a single resistor, allowing a wide range of battery voltages and currents. An open-collector SIGN output indicates current-flow direction, so the user can monitor whether a battery is being charged or discharged. Both devices operate from 3V to 36V, draw less than 100A over temperature, and include an 18A max shutdown mode. Features : Complete High-Side Current Sensing Precision Internal Sense Resistor (MAX471) 2% Accuracy Over Temperature Monitors Both Charge and Discharge 3A Sense Capability with Internal Sense Resistor (MAX471) Higher Current-Sense Capability with External Sense Resistor (MAX472) 100A Max Supply Current 18A Max Shutdown Mode 3V to 36V Supply Operation 8-Pin DIP/SO Packages Specifications : Product: GY-471 MAX471 Current Sensor Module Operating voltage: 3V to 36V Operating current: +/- 3A Sensor: MAX471 Sensor output: 1V / Amp Soldering: Unsoldered components Customization: Suitable for electronic projects Application: Current measurement in circuits Length: 20mm Width: 18mm Package Includes: 1 x Unsoldered GY-471 3A Range MAX471 Current Sensor Module
