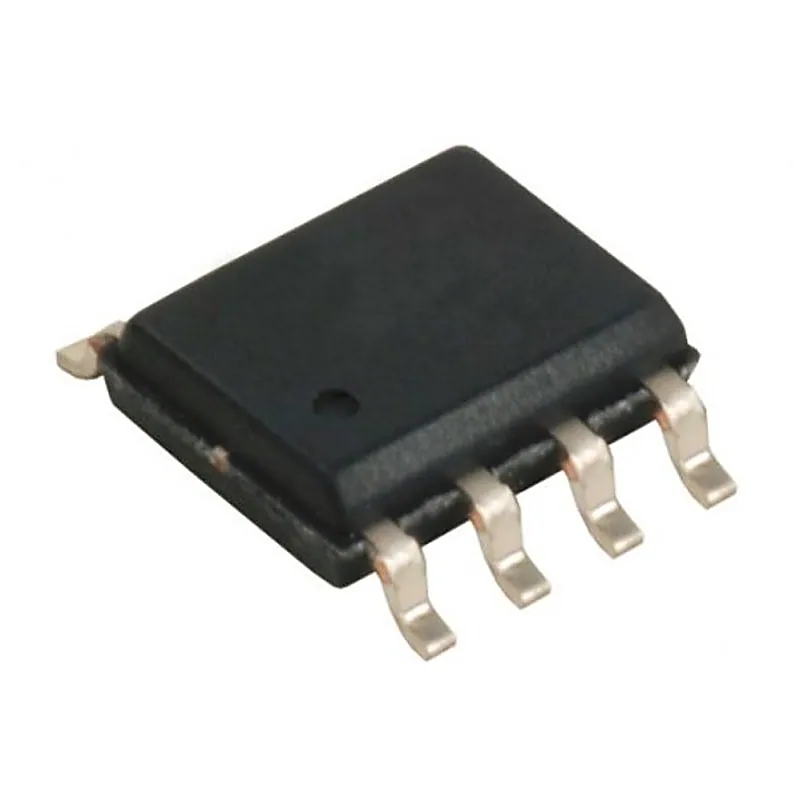

UPC4570 IC - (SMD Package) - Low Noise Dual Ultra Operational Amplifier (Op-Amp) IC

The UPC4570 is an ultra low-noise, wideband high slew-rate, dual operational amplifier. Input equivalent noise is three times better than the conventional 4558 type op-amps. The gain bandwidth products and the slew-rate are seven times better than 4558. In spite of fast AC performance, the UPC4570 is extremely stable under voltage-follower circuit conditions. Supply current is also improved compared with conventional wideband op-amps. Features and Specifications:- Ultra low noise: en = 4.5 nV/√Hz High slew rate: 7 V/μs High gain bandwidth product: GBW = 15 MHz at 100 kHz Internal frequency compensation Max Voltage between V+ and V−: −0.3V to +36V Max Differential Input Voltage (VID): +30V Input Voltage (VI): (V− − 0.3)V to (V+ + 0.3)V Output Voltage (VO): (V− − 0.3)V to (V+ + 0.3)V Max Power Dissipation (PT): 350mW Output Short Circuit Duration (ts): 10 sec Operating Ambient Temperature (TA): −20°C to +80°C Storage Temperature (Tstg): −55°C to +125°C Package Includes:- 1 x UPC4570 IC - (SMD Package) - Low Noise Dual Ultra Operational Amplifier (Op-Amp) IC
