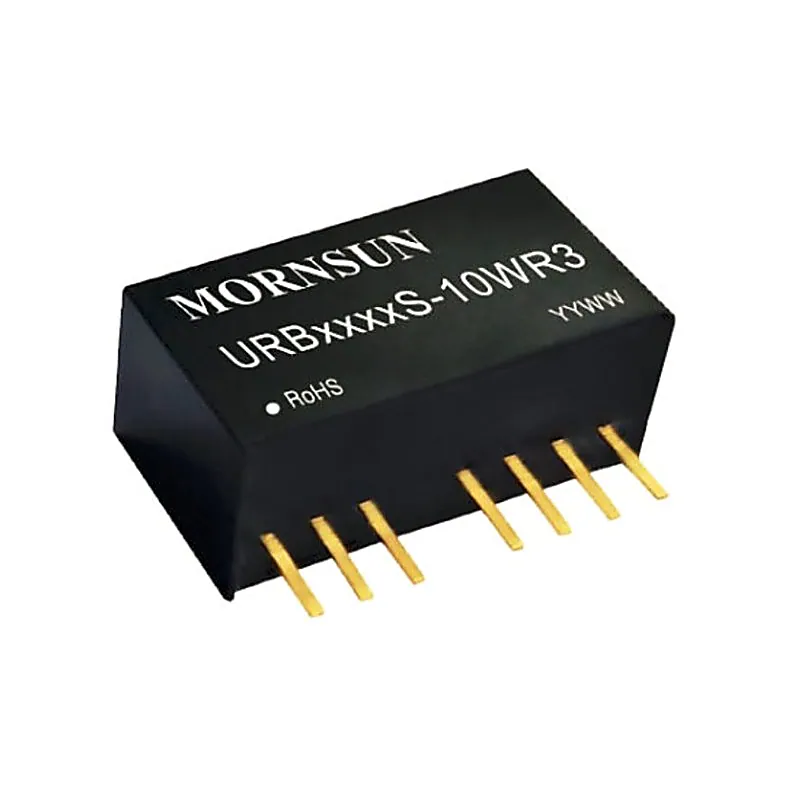

URB2415S-10WR3 Mornsun 24V to 15V DC-DC Converter 10W Power Supply Module - Compact SIP Package

URB2415S-10WR3 series of isolated 10W DC-DC converter products have an ultra-wide 4:1 input voltage and feature efficiencies of up to88%, input to output isolation is tested with 1500VDC and the converters safely operate in an ambient temperature of -40℃to +85℃, input under-voltage protection, output short-circuit, over-current protection and they are widely used in applications such as medical care, industrial control, electric power, instruments and communication fields Features:- Ultra-wide 4:1 input voltage range High efficiency up to 88% I/O isolation test voltage 1.5k VDC High power density Input under-voltage protection, output short circuit, over-current protection Operating ambient temperature range: -40℃ to+85℃ Industry standard pin-out EN62368 approved Specifications:- I/p Voltage range:9-36V Nominal voltage:24V O/p voltage:15V O/p current:667/0mA wattage:10W Isolation: 1.5kvdc Package: SIP Package Includes:- 1 x URB2415S-10WR3 Mornsun 24V to 15V DC-DC Converter 10W Power Supply Module - Compact SIP Package Download DATASHEET : Download
