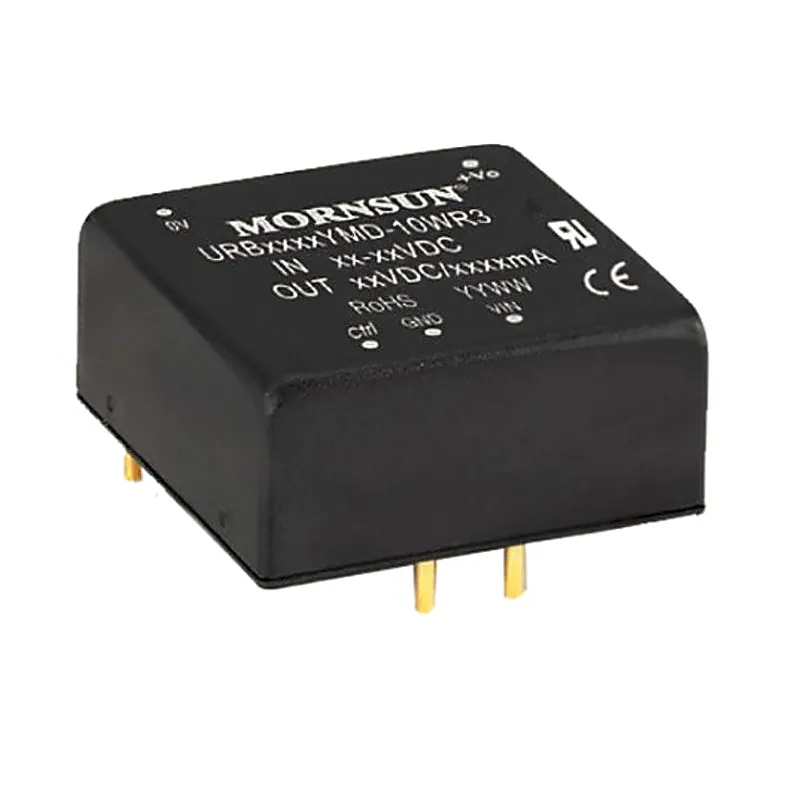

URB2415YMD-10WR3 Mornsun 24V to 15V DC-DC Converter 10W Power Supply Module - DIP Package

URB2415YMD-10WR3 series are isolated 10W DC-DC converter products feature an ultra-wide with 4:1 input voltage with efficiencies of up to 88%, 1500VDC input to output isolation, operating ambient temperature range of -40℃ to +85℃, input under-voltage protection, output short-circuit, over-current, over-voltage protection. They meet CLASS A of CISPR32/EN55032 EMI standards without external components, optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection and they are widely used in applications such as industrial control, electric power, instruments, communication and railway applications. Features:- Ultra-wide 4:1 input voltage range High efficiency up to 88% No-load power consumption as low as 0.12W I/O isolation test voltage1.5K VDC Input under-voltage protection, output short circuit, over-current, over-voltage protection Operating ambient temperature range: -40℃ to+85℃ Meets CISPR32/EN55032 CLASS A, without extra components Input reverse polarity protection available with Chassis (A2S) or 35mm DIN-Rail mounting (A4S) version IEC60950, UL60950, EN62368 approved Industry standard pin-out Specifications:- I/p Voltage range:9-36V Nominal voltage:24V O/p voltage:15V O/p current:667/0mA wattage:10W Isolation:1.5kvdc Package: DIP Package Includes:- 1 x URB2415YMD-10WR3 Mornsun 24V to 15V DC-DC Converter 10W Power Supply Module - DIP Package Download DATASHEET : Download
