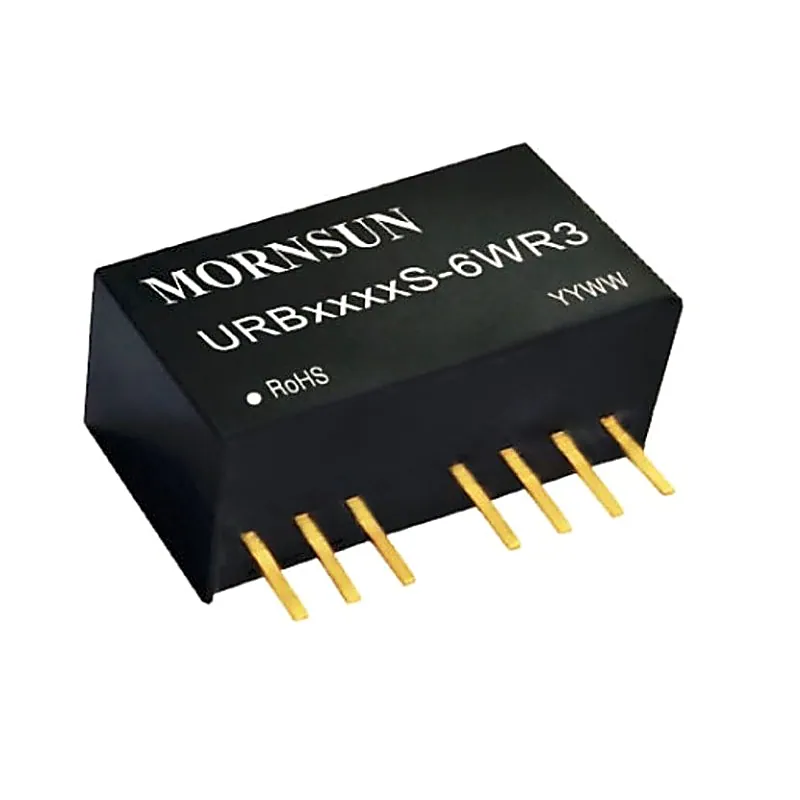

URB2424S-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - Compact SIP Package

URB_S-6WR3 series of isolated 6W DC-DC converter products with a 4:1 input voltage range. They feature efficiencies of up to 87%, 1600VDCinput to output isolation, operating ambient temperature range of -40℃ to +105℃, input under-voltage protection, output short-circuit, over-current protection and they are widely used in applications such as medical care, industrial control, electric power, instruments and communication fields.. Features:- Ultra-wide 4:1 input voltage range High efficiency up to 87% No-load power consumption as low as 0.12W I/O isolation test voltage 1.6K VDC Input under-voltage protection, output short circuit, over-current protection Operating ambient temperature range: -40℃ ~+105℃ Industry standard pin-out EN62368 approved Specifications:- I/p Voltage range:9-36V Nominal voltage:24V O/p voltage:24V O/p current:250/0mA wattage:6W Isolation:1.5kvdc Package: SIP Package Includes:- 1 x URB2424S-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - Compact SIP Package Download DATASHEET : Download
