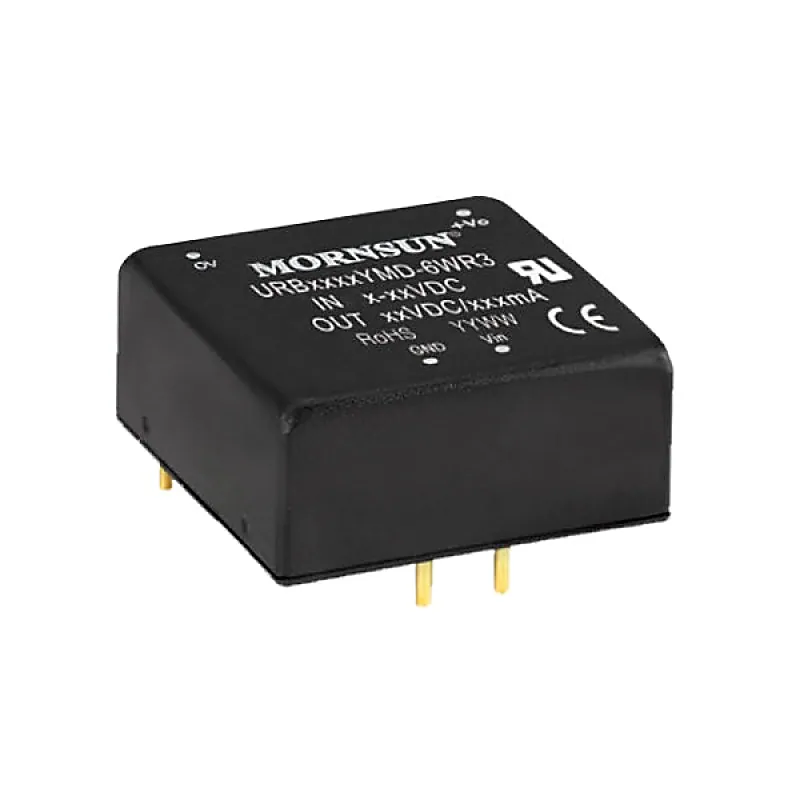

URB2424YMD-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - DIP Package
URB2424YMD-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - DIP Package
FEATURES : Ultra wide 4:1 input voltage range High efficiency up to 88% No-load power consumption as low as 0.12W I/O test isolation voltage: 1.5k VDC Input under-voltage protection, output short circuit, over-current, over-voltage protection Operating ambient temperature range: -40 to +85 Meet CISP
+ 18% GST (added at checkout)
In stock — 13 units ready
- Ultra wide 4:1 input voltage range
- High efficiency up to 88%
- No-load power consumption as low as 0.12W
- I/O test isolation voltage: 1.5k VDC
- Input under-voltage protection, output short circuit, over-current, over-voltage protection
- Operating ambient temperature range: -40 to +85
- Meet CISPR32/EN55032 CLASS A, without extra components
- Input reverse polarity protection available with chassis(A2S ) or Din-Rail mounting (A4S) version
- IEC60950, UL60950, EN60950 approved
- Meets EN50155 railway standard
- Industry standard pin-out
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
FEATURES : Ultra wide 4:1 input voltage range High efficiency up to 88% No-load power consumption as low as 0.12W I/O test isolation voltage: 1.5k VDC Input under-voltage protection, output short circuit, over-current, over-voltage protection Operating ambient temperature range: -40 to +85 Meet CISPR32/EN55032 CLASS A, without extra components Input reverse polarity protection available with chassis(A2S ) or Din-Rail mounting (A4S) version IEC60950, UL60950, EN60950 approved Meets EN50155 railway standard Industry standard pin-out
