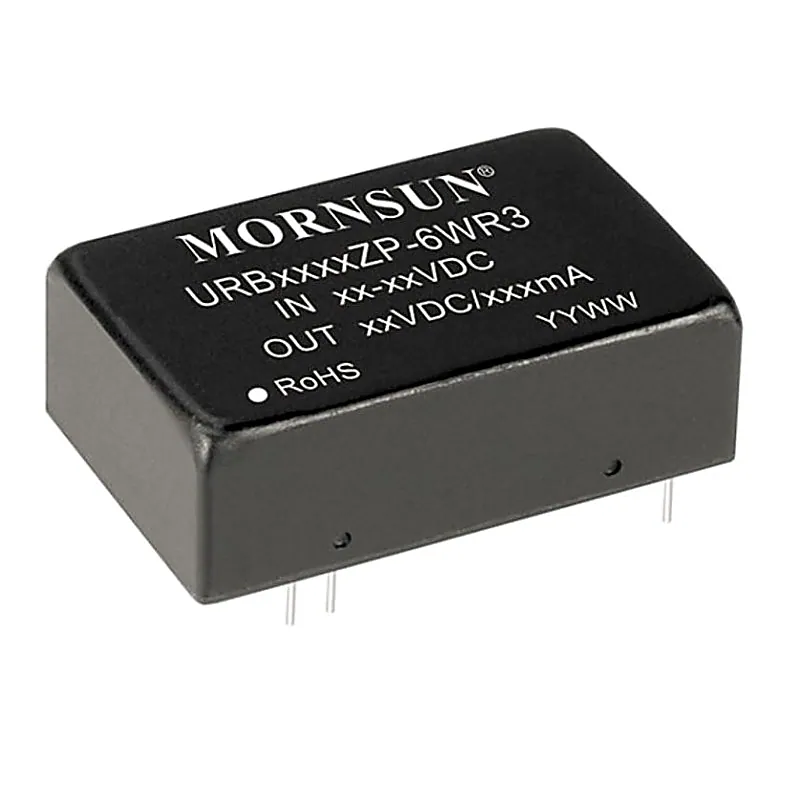

URB2424ZP-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - DIP Package

URB2424ZP-6WR3 series of isolated 6W DC-DC converter products with an ultra-wide range of voltage input of 9-36VDC(24VDCinput), 18-75VDC(48VDC input), input to output isolation is tested with 1500VDC, input under-voltage protection, output over-voltage ,short-circuit, over-current protection. They meet CLASS A of CISPR32/EN55032 EMI standards without external components and they are widely used in fields such as industrial control, electric power, instruments, communication and railway applications. Features:- Ultra-wide 4:1 range input voltage High efficiency up to 88% No-load power consumption as low as 0.12W I/O test isolation voltage : 1.5k VDC Operating ambient temperature range: -40℃ to+85℃ Input under-voltage protection, output over-voltage, short circuit, over-current protection Meet CISPR32/EN55032 CLASS A, without extra components Industry standard pin-out UL60950, EN60950, IEC60950 approved Meets EN50155 railway standard Specifications:- I/p Voltage range:9-36V Nominal voltage:24V O/p voltage:24V O/p current:250/0mA wattage:6W Isolation:1.5kvdc Package: DIP Package Includes:- 1 x URB2424ZP-6WR3 Mornsun 24V to 24V DC-DC Converter 6W Power Supply Module - DIP Package Download DATASHEET : Download
