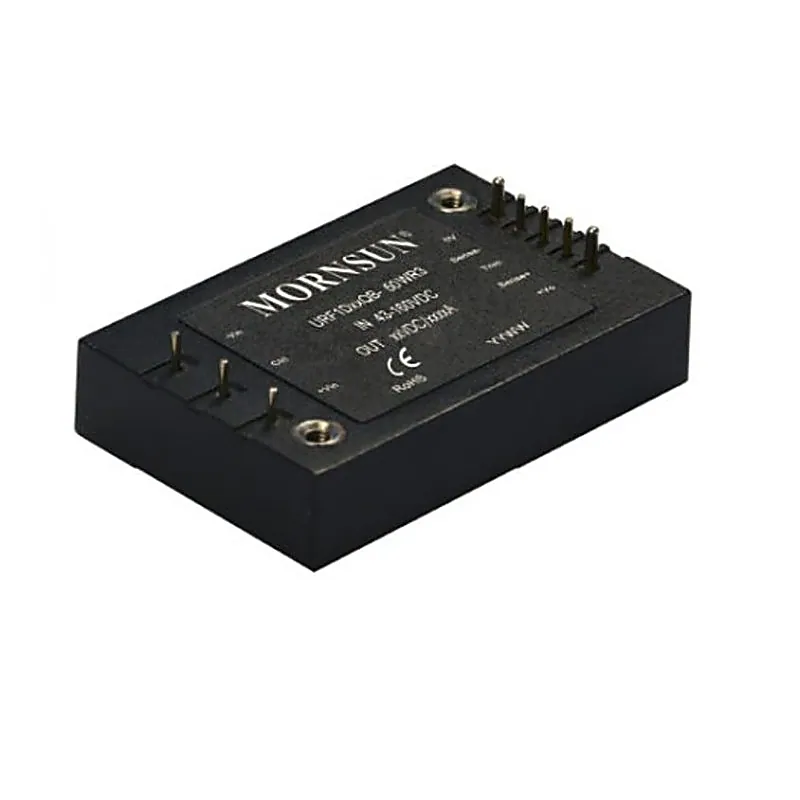

URF1D24QB-50WR3 Mornsun 110V to 24V DC-DC Converter 50W Power Supply Module - Horizontal DIP Package

URF1D24QB-50WR3 is a high-performance product specifically designed for a variety of railway applications. The DC-DC converters feature 100W output power with no requirement for minimum load, wide input voltage from 43-160VDC, and allowing operating temperature as high as 105℃. The products also provide input under-voltage protection, output over-voltage, short-circuit and over-temperature protection. Additional functions include remote On/Off control, remote sense compensation and output voltage trim adjustment. EN50155 approved and they are widely used in railway systems and associated equipment Features:- Ultra-wide input voltage range: 43-160VDC High efficiency up to 89% Low no-load power consumption Reinforced insulation, input – output isolation test voltage: 3k VAC, input – case isolation test voltage: 2.1k VAC Operating ambient temperature range: -40℃to +105℃ Input under-voltage protection, output short-circuit, over-current, over-voltage, over-temperature protection Industry standard 1/4 brick EN50155 approved Specifications:- I/p Voltage range:43-160V Nominal voltage:110V O/p voltage:24V O/p current:2083/0mA wattage:50W Isolation:3kvac Package: Horizontal(Dip) Package Includes:- 1 x URF1D24QB-50WR3 Mornsun 110V to 24V DC-DC Converter 50W Power Supply Module - Horizontal DIP Package Download DATASHEET : Download
