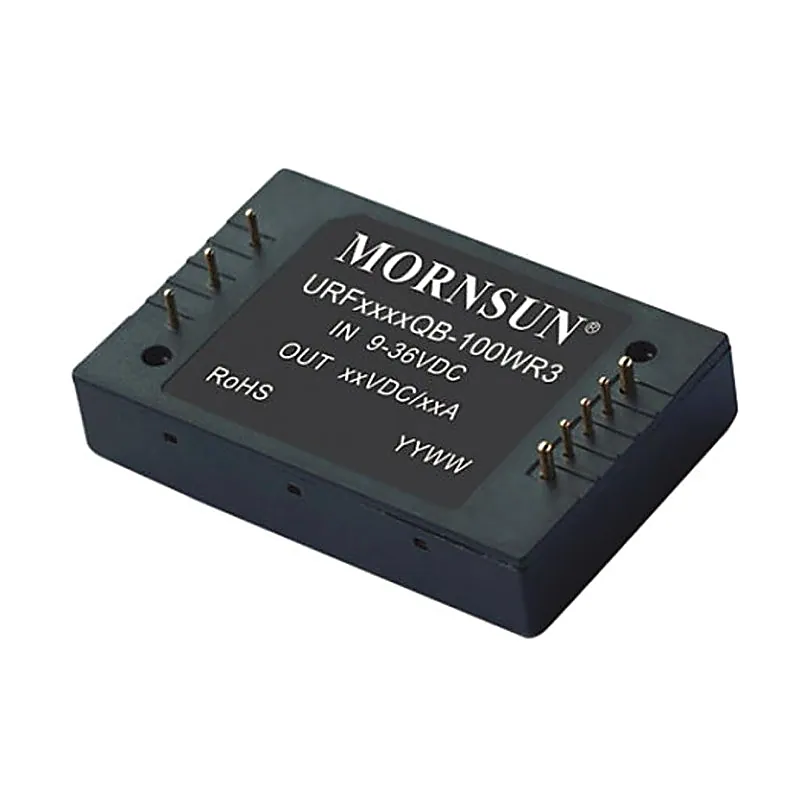

URF2424QB-100WR3 Mornsun 24V to 24V DC-DC Converter 100W Power Supply Module - Five Sided Metal Shielded Package

URF2424QB-100WR3 series of isolated 100W DC-DC products with 4:1 input voltage. They feature efficiency up to90%, 2250VDC input to output isolation, operating ambient temperature of -40℃ to +85℃, input under-voltage, output over–voltage, short-circuit, over-current protection, over-temperature protection. The products meet CLASS B of CISPR32/EN55032 EMI standards by adding there commended external components, and they are widely used in applications such as battery powered systems, industrial controls, electricity, instrumentation, railway, communication Features:- Ultra-wide 4:1 input voltage range High efficiency up to 90% I/O isolation test voltage: 2.25k VDC Input under-voltage protection, output short-circuit, over-current, over-voltage, over-temperature protection Operating ambient temperature range: -40℃ to +85℃ Five-sided metal shielded package Industry standard ¼-Brick package and pin-out EN62368 approved Meet UL62368, IEC62368, EN50155 standards Specifications:- I/p Voltage range:9-36V Nominal voltage:24V O/p voltage:24V O/p current:4.2A wattage:100W Isolation:2.25kvdc Package: Five-sided metal shielded Package Includes:- 1 x URF2424QB-100WR3 Mornsun 24V to 24V DC-DC Converter 100W Power Supply Module - Five Sided Metal Shielded Package Download DATASHEET : Download
