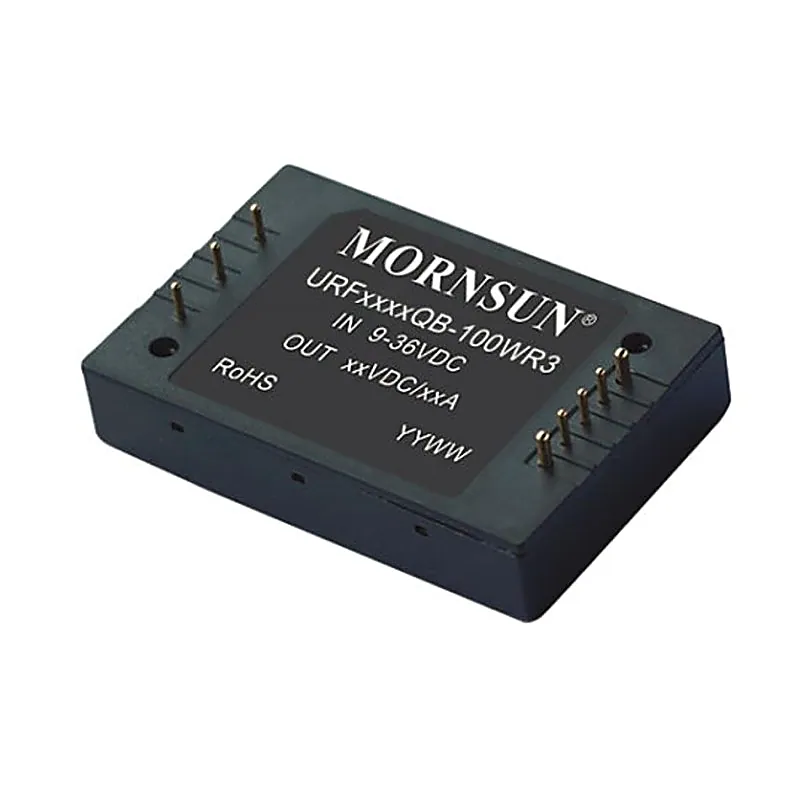

URF4805QB-100WR3 Mornsun 48V to 5V DC-DC Converter 100W Power Supply Module - Five Sided Metal Shielded Package

URF4805QB-100WR3 series are isolated 100W DC-DC products with 4:1 input voltage. They feature efficiency up to 94%, 2250VDC input to output isolation, operating temperature of -40℃ to +85℃, input under-voltage, output over–voltage, over-current, short circuit, over-temperature protection. EN62368 approved and they are widely used in applications such as battery powered systems, industrial controls, electricity, instrumentation, railway, communication and intelligent robotics. Features:- Ultra-wide 4:1input voltage range High efficiency up to 94% I/O isolation test voltage: 2250VDC Input under-voltage protection, output short circuit, over-current, over–voltage, over-temperature protection Operating ambient temperature range: -40℃ to +85℃ Five-sided metal shielding package Industry standard ¼-Brick package and pin-out Specifications:- I/p Voltage range:18-75V Nominal voltage:48V O/p voltage:5V O/p current:20A wattage:100W Isolation:2.25kvdc Package: Five-sided metal shielded Package Includes:- 1 x URF4805QB-100WR3 Mornsun 48V to 5V DC-DC Converter 100W Power Supply Module - Five Sided Metal Shielded Package Download DATASHEET : Download
