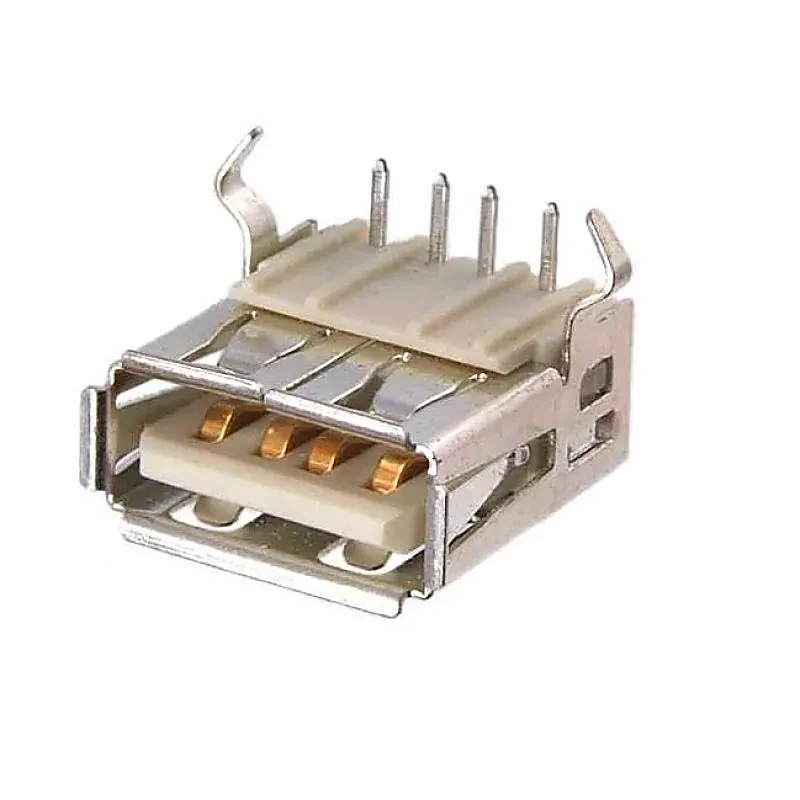

USB 2.0 Type A Female Connector PCB Mount Right Angle
USB 2.0 Type A Female Connector PCB Mount Right Angle
Type A USB 2.0 Female Connector Straight Type PCB Surface Mount Connector Port. USB Type-A 4 Pin, Female Connector, Metal Shield, Solder Type. This USB A Type Female connector can be used very widely. USB 2.0, Type A Connector, A-Type USB Female Connector, B type USB, Connector, Micro USB, Micro USB
+ 18% GST (added at checkout)
In stock — 1084 units ready
- Gender: Female
- USB Type: USB A 2.0
- Voltage Rating: 250 V AC Min
- Current Rating: 1.5 A
- Contact Resistance: 30mΩ max.
- Insulation Resistance: 1000MΩ min. At 500 V DC
- Dielectric Withstanding: 750 V AC (rms)\ for 1 min
- Temperature Range: -40°C To + 85°C
- Durability (life Test): 1500 Cycles
- Insertion Force: 35 N max
- Extraction Force: 10 N min
- Color: Silver
- Pins: 4
- Package/Case: Through Hole Right Angle Female Connector
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
Type A USB 2.0 Female Connector Straight Type PCB Surface Mount Connector Port. USB Type-A 4 Pin, Female Connector, Metal Shield, Solder Type. This USB A Type Female connector can be used very widely. USB 2.0, Type A Connector, A-Type USB Female Connector, B type USB, Connector, Micro USB, Micro USB 2.0 B type 4Pin Connector, Type A Connector, USB, USB 2.0, USB Connector, USB Male connector, USB Male Port, USB Port Specifications:- Gender: Female USB Type: USB A 2.0 Voltage Rating: 250 V AC Min Current Rating: 1.5 A Contact Resistance: 30mΩ max. Insulation Resistance: 1000MΩ min. At 500 V DC Dielectric Withstanding: 750 V AC (rms)\ for 1 min Temperature Range: -40°C To + 85°C Durability (life Test): 1500 Cycles Insertion Force: 35 N max Extraction Force: 10 N min Color: Silver Pins: 4 Package/Case: Through Hole Right Angle Female Connector Package Includes:- 1 x USB 2.0 Type A Female Connector PCB Mount Right Angle
