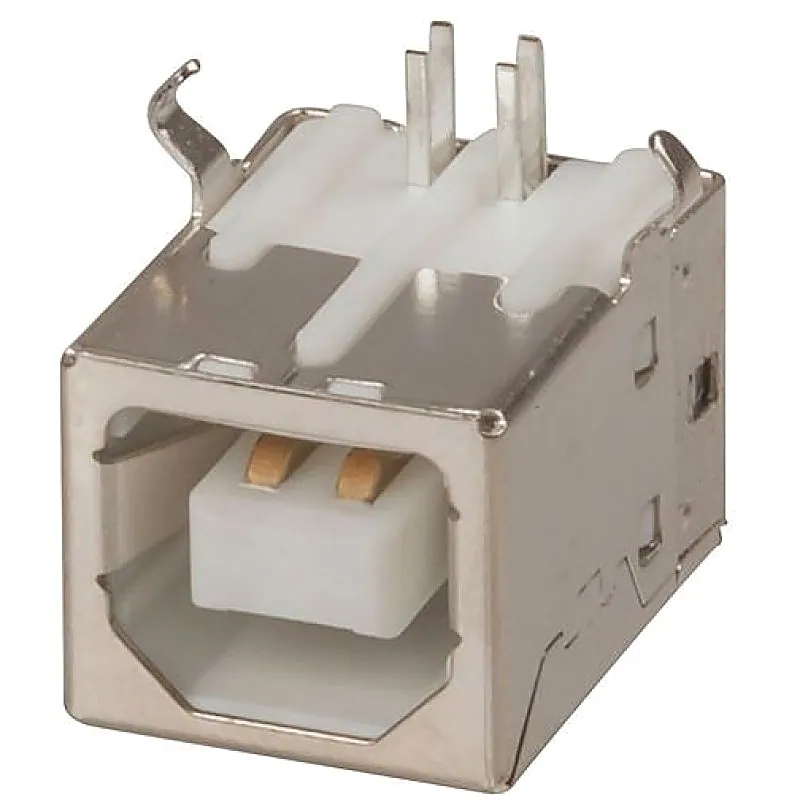

USB 2.0 Type B Female Jack 4 Pin 90 Degree PCB DIP Socket Connector

USB 2.0 Type B FEMALE 4-Pin DIP PCB Socket Connectors Cables Printer Port USB Female Type-B Port 4 Pin Right Angle PCB Mount Connector Silver Tone For Printer Arduino ONU MEGA. USB Type ‘B’ Female connector. The 4 connection pins have .1″ spacing allowing it to be inserted into development boards and perf boards with mild modification. You can either drill two 80mil holes for the support posts, or cut them off completely. This is a USB Type B 4-Pin Female Connector Socket. It is used for laptop, computer interface devices, mobile phone, digital devices, communication equipment and aviation. Features:- USB 2.0 Type B Female Jack 4 Pin 90 Degree PCB DIP Socket Connector Feature a nickel-plated outer shield, UL94V-0 rated thermoplastic insulator Type B is the one with the rectangular cross-section, as found on PCs and Macs Specifications:- Product Name : USB 2.0 Socket Material : Metal, Electronic Parts Type : USB Type B Female Gender: Female Current: 2A Maximum Mount Style: Through Hole Contact Resistance: ≤0.03Ω Insulation Resistance: ≥1000MΩ Withstand Voltage: 500V AC/minute Operating temperature: -25 to +85°C Package: Through-hole straight male connector Rated Load: 30V DC 1.5A Pins: 4 Mount Pin Distance : 12mm; Pin Spacing : 2 x 1.5mm Total Size : 16 x 12 x 11mm Weight : 34gm Package Includes:- 1 x USB 2.0 Type B Female Jack 4 Pin 90 Degree PCB DIP Socket Connector
