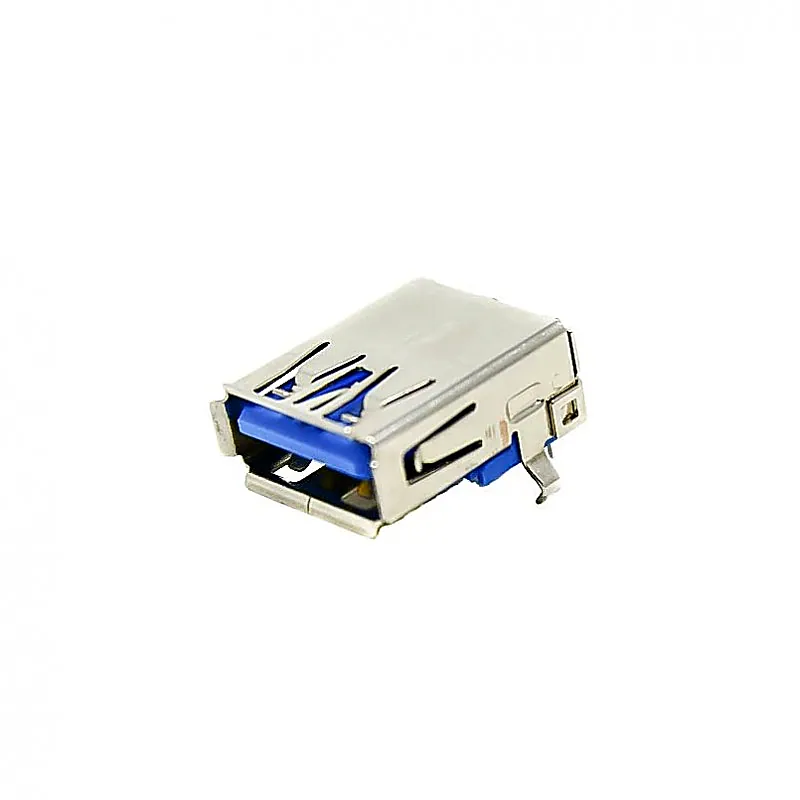

USB 3.0 Type A Female 9 pin Right Angle PCB Mount Connector

This is a USB 3.0 Type-A Female 9 pin Right Angle PCB Mount Connector. It complies with the Universal Serial Bus implementer's forum.The USB 3.0 architecture allows transmission speeds up to 5 Gbits/s which are 10x faster than the previous standard. This USB 3.0 dual-bus architecture is both backward and forward compatible (USB 3.0 devise in a 2.0 port). The benefits of using USB 3.0 are reduced transmission times and power consumption. The USB 3.0 ports are characterized by their blue color and will physically accept 2.0 hardware despite having more pins. Features: High transmission speed. Color-coded blue to mark USB 3.0 Durable. Robust. Supports USB 2.0 hardware. Package Includes: 1 x USB 3.0 Type A Female 9 pin Right Angle PCB Mount Connector Specifications :- Connector Type USB 3.0 Connector USB Type A Voltage Rating (V) 250 V AC Current Rating (A) 1.5 Transmission Speed 5 Gbits/s Material Metal and plastic Contact Material Copper Alloy, Selective Gold Plated Insulation Material PBT UL 94V-0 Contact Resistance 30m Insulation Resistance (M) 1000 Operating Temperature Range (C) -40 to 60 Durability 1500 cycles Insertion Force (N) 35 Extraction Force (N) 10 Length (mm) 16.5 Width (mm) 15 Height (mm) 10 Weight (gm) 11
