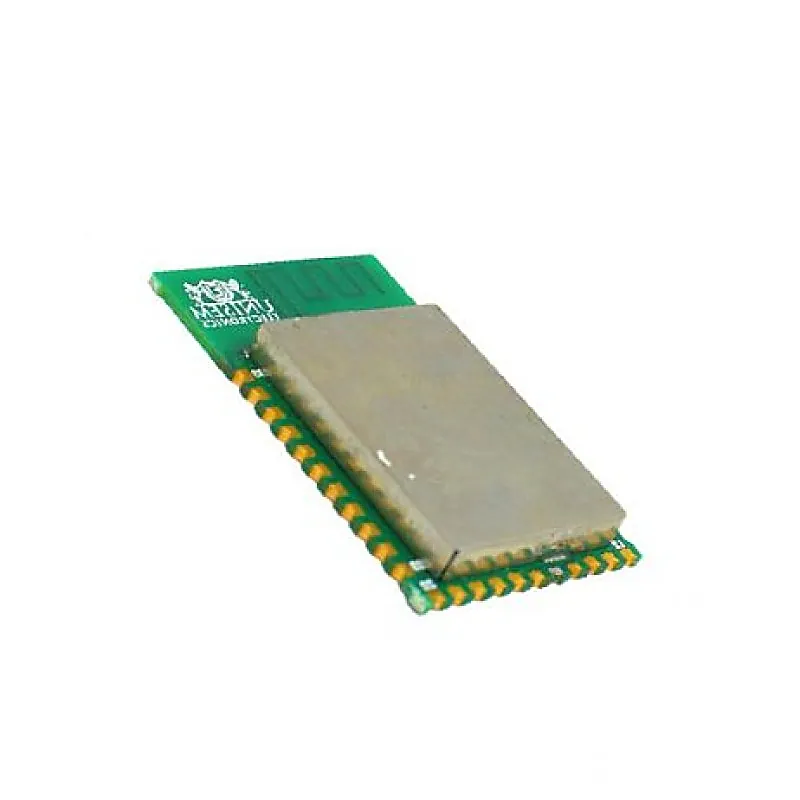

USE 8762E BLE Module Commerical Grade

The USE8762C_BLE series is an ultra-low-power system-on-chip solution for Bluetooth 5.2 low energy and 2.4GHz proprietary multi-application that combine the excellent performance of a leading RF transceiver with a low-power ARM Cortex-M0+ power management unit, ADC, and smart I/O distribution controller. In addition, the RTL8762E supports an analog MIC interface that integrates a sigma-delta ADC, programmable gain amplifier, and microphone bias circuit for voice command application. The RTL8762E also embeds an IR transceiver, hardware key-scan, and Quad-decoder on a single IC within a QFN package. Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product. Features: Ultra-low power consumption with intelligent PMU. Supports Bluetooth 5.2 core specification and 2.4GHz proprietary feature multi-protocol independently. Supports 2Mbps LE LE advertising Extensions LE Long Range Additional Adv channel Channel Selection #2 High Duty Cycle Non-Connectable Adv Integrated MCU to execute Bluetooth protocol stack Supports multiple-level Low Energy states Package includes: 1 x USE 8762E BLE Module Commerical Grade Attachments : Download
