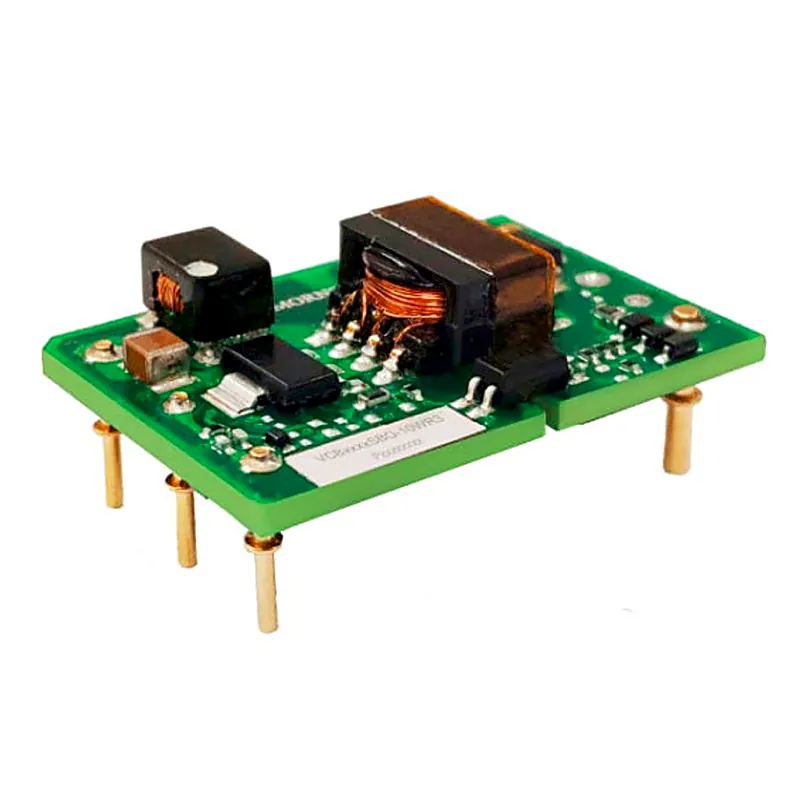

VCB4805SBO-10WR3 Mornsun 48V to 5V DC-DC Converter 10W High Efficiency Isolated Module - DIP Package

VCB4805SBO-10WR3 series are isolated 10W DC-DC converter products with a 2:1 input voltage range. They feature efficiencies of upto88%,1500VDC input to output isolation, operating temperature of -40℃ to +85℃, input under-voltage protection, output over-voltage, over-current and short circuit protection, which is widely used in communication field, such as switches, repeaters, intelligent communication gateways, GPS synchronous clock and 4G/5G base station etc. Features:- Wide 2:1 input voltage range High efficiency up to 88% I/O isolation test voltage 1.5K VDC Input under-voltage protection, output short-circuit, over-current, over-voltage protection Operating ambient temperature range: -40°C to +85°C Industry standard 1/16 brick EN62368 approved Meets UL62368 standard Specifications:- I/p Voltage range:36-75V Nominal voltage:48V O/p voltage:5V O/p current:2000mA wattage:10W Isolation:1.5kvdc Package: Dip Package Includes:- 1 x VCB4805SBO-10WR3 Mornsun 48V to 5V DC-DC Converter 10W High Efficiency Isolated Module - DIP Package Download DATASHEET : Download
