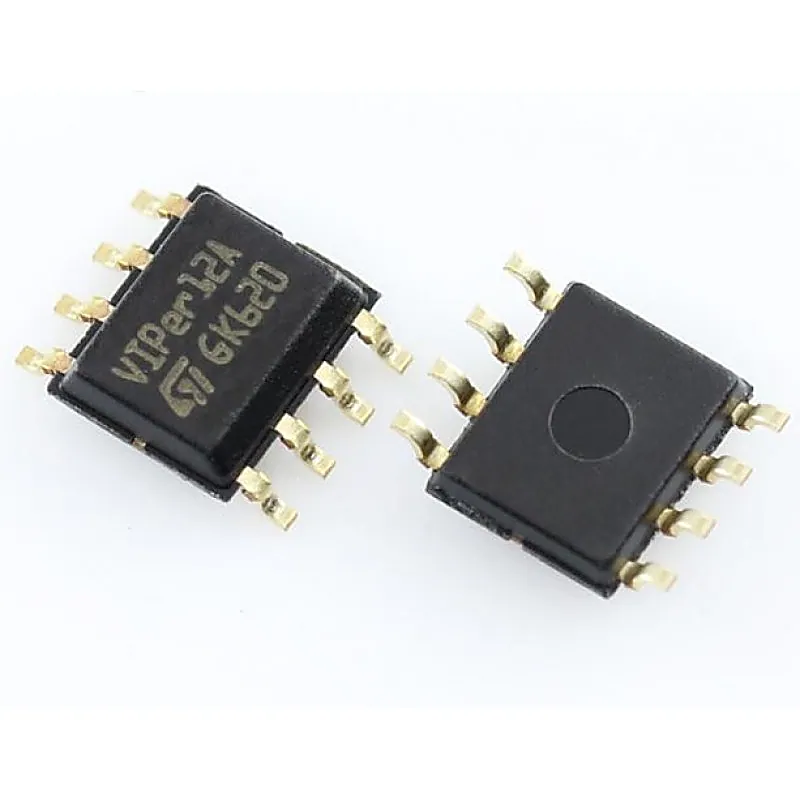

VIPer12A IC - (SMD Package) - Low Power SMPS Primary Switcher IC
VIPer12A IC - (SMD Package) - Low Power SMPS Primary Switcher IC
The VIPER12A combines a dedicated current mode PWM controller with a high voltage powerMOSFET on the same silicon chip. Typical applications cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxiliary supplies for motor control, etc. The internal
+ 18% GST (added at checkout)
In stock — 249 units ready
- Fixed 60 kHz switching frequency
- 9 V to 38 V wide range VDD voltage
- Current mode control
- Auxiliary undervoltage lockout with hysteresis
- High voltage start-up current source
- Overtemperature, overcurrent and overvoltage protection with auto-restart
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The VIPER12A combines a dedicated current mode PWM controller with a high voltage powerMOSFET on the same silicon chip. Typical applications cover off line power supplies for battery charger adapters, standby power supplies for TV or monitors, auxiliary supplies for motor control, etc. The internal control circuit offers the following benefits: Large input voltage range on the VDD pin accommodates changes in auxiliary supplyvoltage (This feature is well adapted to battery charger adapter configurations), automatic burst mode in low load condition and overvoltage protection in HICCUP mode. Features of VIPer12A IC:- Fixed 60 kHz switching frequency 9 V to 38 V wide range VDD voltage Current mode control Auxiliary undervoltage lockout with hysteresis High voltage start-up current source Overtemperature, overcurrent and overvoltage protection with auto-restart
