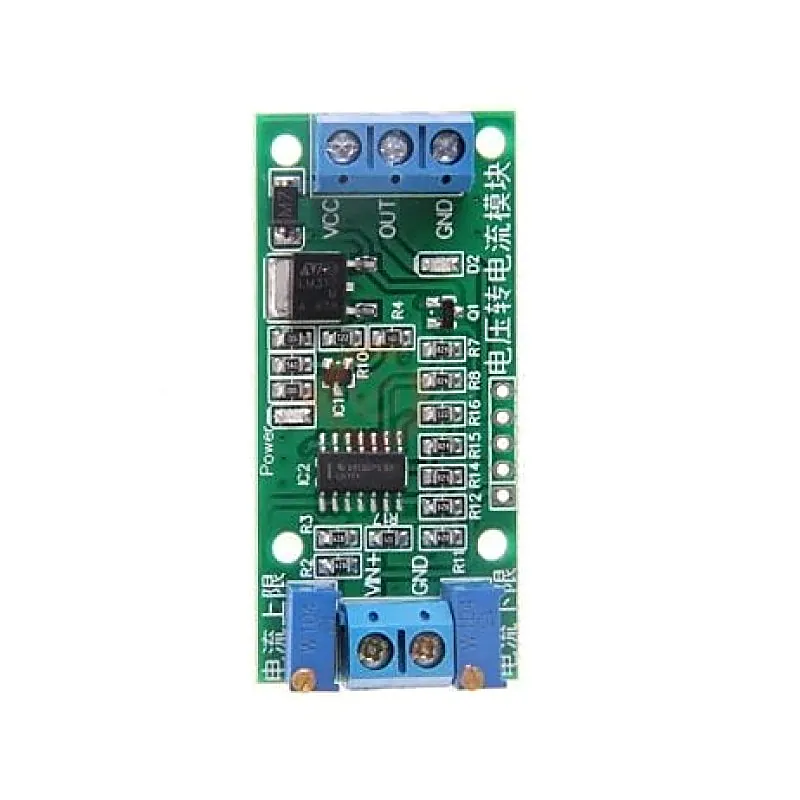

Voltage to Current Module 0-2.5V to 0-20mA Current Transmitter

Voltage to Current Module 0-2.5V to 0-20mA Current Transmitter

The voltage switch current module can convert a 0-2.5V voltage signal into a 4-20mA current signal.In the process of signal transmission circuit voltage signal will become weak with the transmission distance increased, the transmission can be avoided using a weak electric current signal. Features: P

+ 18% GST (added at checkout)

In stock — 10 units ready

• Power supply voltage 7-30VDC power supply voltage must be greater than the voltage to be converted
• The voltage signal to be converted: 2.5V 3.3V 5V 10V 15V 24V (Depends on Module Specifications; looks same but function is different)
• Output current: O-20mA or 4-20mA
• Both zero point and full scale can be adjusted by potentiometer
• The module has isolation properties and non-optocoupler isolation
• Power supply voltage: DC 12V~24V
• Input voltage signal: 0~2.5V
• Output current: 4-20mA
• Zero and span can be adjusted (potentiometer adjustment).
• With the isolated nature of the non-optically isolated.
