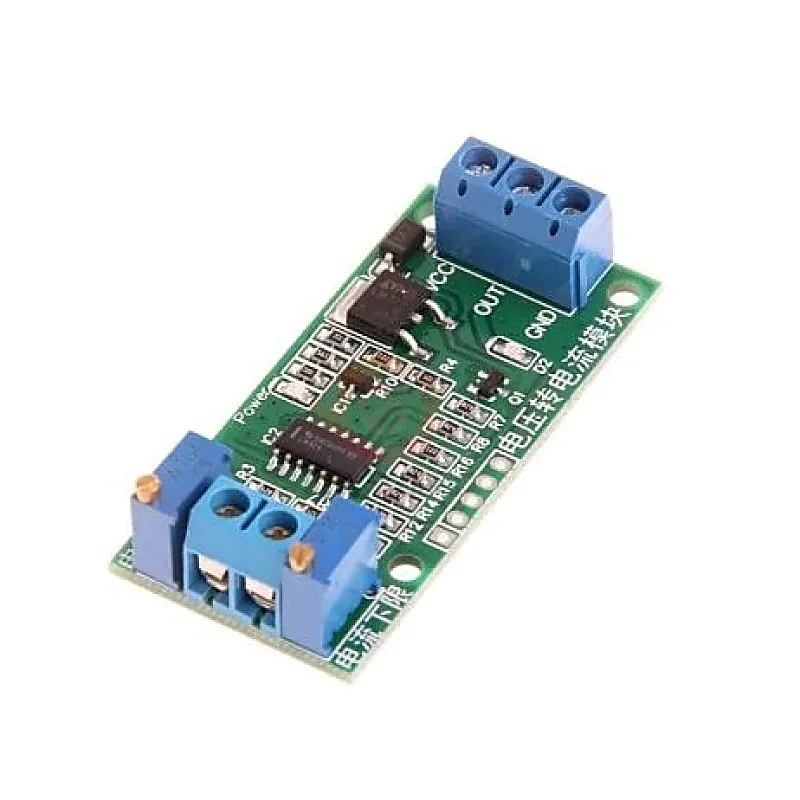

Voltage to Current Module 0-3.3V to 0-20mA Current Transmitter

Voltage to Current Module 0-3.3V to 0-20mA Current Transmitter module can convert a 0-3.3V voltage signal into a 4-20mA current signal. In the process of signal transmission circuit voltage signal will become weak with the transmission distance increased, the transmission can be avoided using a weak electric current signal. Features: Power supply voltage 7-30VDC power supply voltage must be greater than the voltage to be converted The voltage signal to be converted: 2.5V 3.3V 5V 10V 15V 24V (Depends on Module Specifications; looks same but function is different) Output current: O-20mA or 4-20mA Both zero point and full scale can be adjusted by potentiometer The module has isolation properties and non-optocoupler isolation. Specifications: Power supply voltage: DC 12V~24V Input voltage signal: 0~3.3V Output current: 4-20mA Zero and span can be adjusted (potentiometer adjustment). With the isolated nature of the non-optically isolated. Package Includes: 1 x Voltage to Current Module 0-3.3V to 0-20mA Current Transmitter
