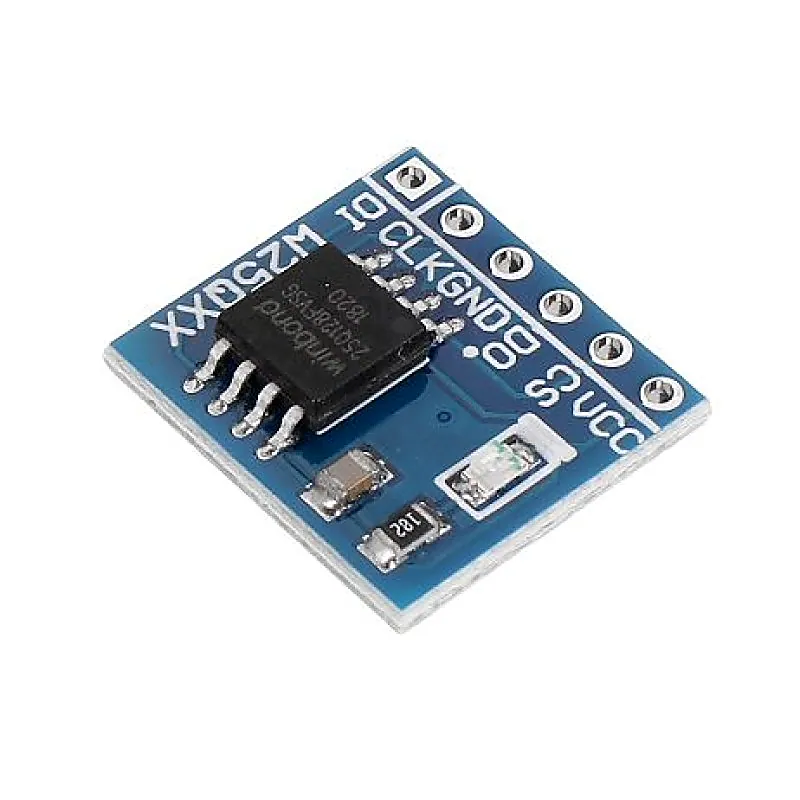

W25Q32 32Mbit 4Mbyte Capacity Flash Storage Module

The W25Q32JV (32M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins, and power. The 25Q series offers flexibility and performance well beyond ordinary Serial Flash devices. They are ideal for code shadowing to RAM, executing code directly from Dual/Quad SPI (XIP), and storing voice, text, and data. The device operates on a single 2.7V to 3.6V power supply with 1A for power-down. All devices are offered in space-saving packages Features: Support SPI interface Provide STM32 test code Using serial Nor flash external extender memory chip W25Q32 Package Includes: 1 x W25Q32 32Mbit 4Mbyte Capacity Flash Storage Module Additional information Model W25Q32 Capacity 32M-bit / 4M-byte Clock frequency less than 104MHz Working voltage 2.7~3.6V Module size 14mm x 15mm
