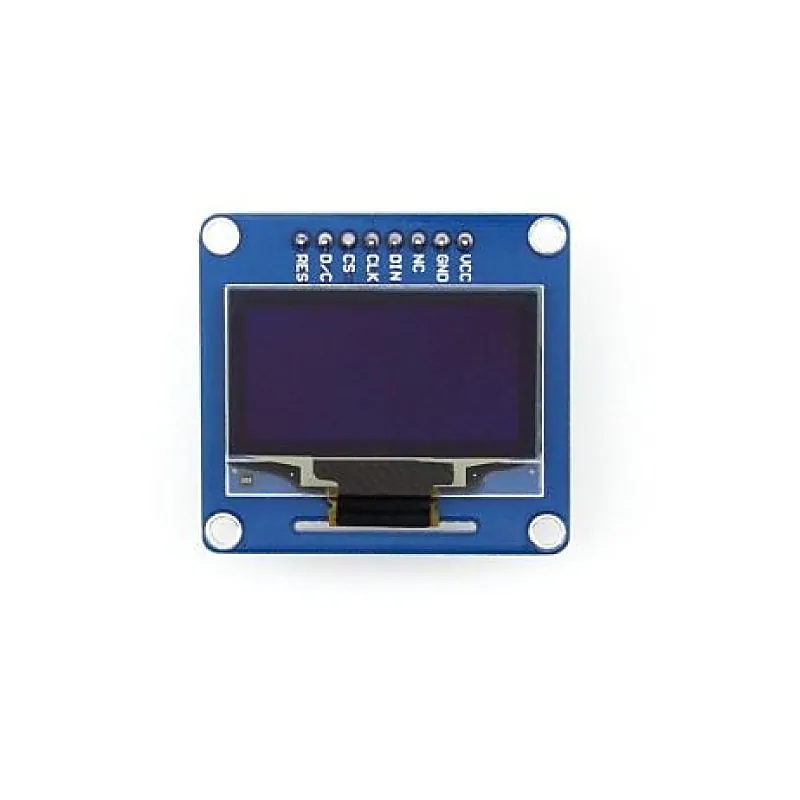

Waveshare 1.3 Inch OLED Display (B) Module

This is a Waveshare 1.3 Inch OLED Display (B) module. It is a very high-contrast display with no backlight. It is perfect when you need an ultra-small display. This module supports SPI/I2C communication interfaces. It supports various hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. This module provides 3 kinds of driver interfaces; they are 3-wire SPI, 4-wire SPI, and I2C interface. Pin Definition: 1.GND: Power ground 2.VCC: Power positive 3.SCL: Serial Clock Line 4.SDA: Serial Data wire. Package Includes: 1 x Waveshare 1.3 Inch OLED Display (B) Module Specifications :- Driver Chip SH1106 Interface 3-wire SPI, 4-wire SPI, I2C Resolution 128 x 64 Display Size 1.3 Inch Colors Blue Visible Angle >160 Operating Temperature () -30~70 Storage Temperature() -30~80 Operating Voltage 3.3V / 5V Length (mm) 40.5 Width (mm) 37.5 Height (mm) 3 Weight (gm) 5
