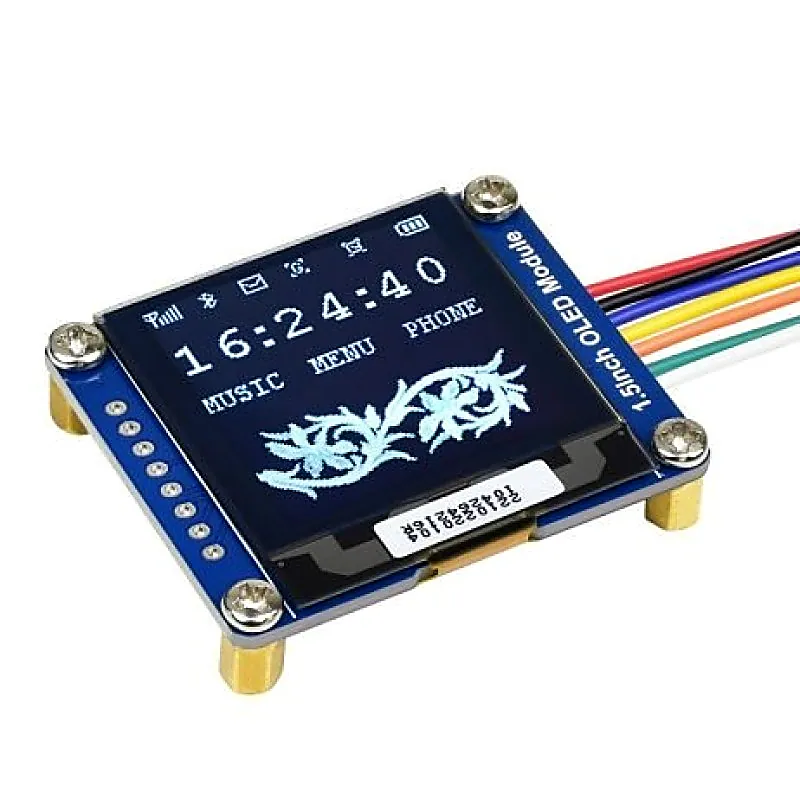

Waveshare 1.5 inch 128x128 General OLED Display Module

This is a general 1.5inch diagonal OLED display Module from Waveshare, 128x128 pixels monochrome dot matrix display module with 16 grayscales, and embedded controller communicating via SPI or I2C interface. It is perfect when you need an ultra-small display. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range, and low power consumption. Features: 128x128 high resolution. 16 grayscale, the better display effect. Supports SPI or I2C interface, configured via an onboard resistor. Comes with development resources and a manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32). Package Includes: 1 x 1.5inch OLED Module 1 x PH2.0 7Pin Specifications: Driver SSD1327 Display Size (inch) 1.5 Display Color White Pixel Resolution 128 x 128 Grayscale 16 Interface Type I2C, SPI Viewing angle >160 Input Voltage (V) 3.3 to 5
