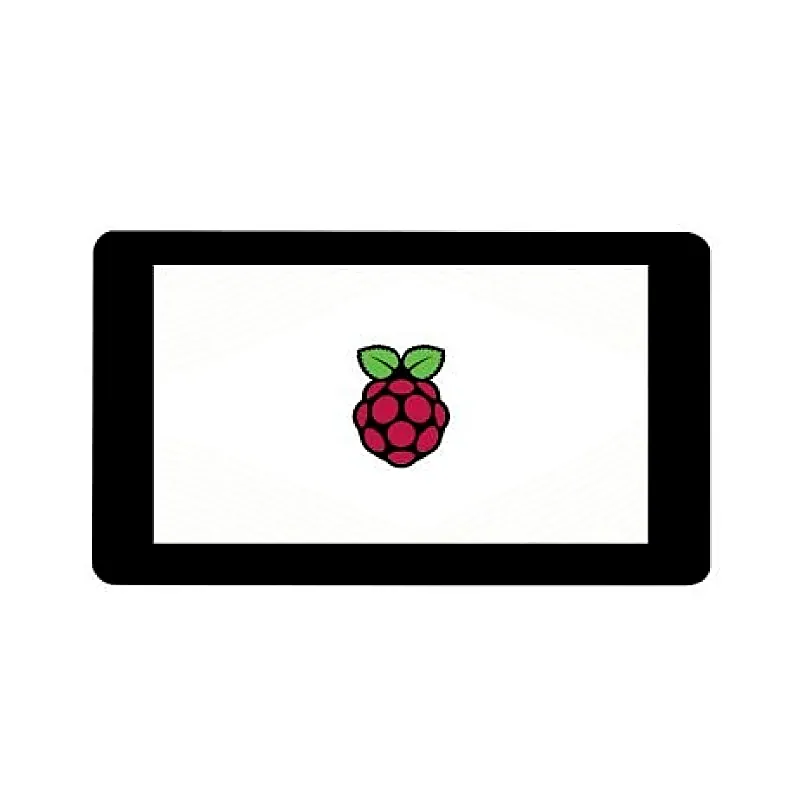

Waveshare 7 inch 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface

Waveshare 7 inch 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface
This is a Waveshare 17.78 CM (7 inch) 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface. Toughened glass capacitive touch panel. It supports Raspberry Pi and can also be used as a computer monitor. This Display is Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver
+ 18% GST (added at checkout)
In stock — 54 units ready
- Connect the DSI interface of 7inch DSI LCD to the DSI interface of Raspberry Pi.
- For easy use, you can fix the Raspberry Pi on the backside of the 7inch DSI LCD with screws
- 7 inch TFT screen. 800480 hardware resolution
- Capacitive touch panel, support 5-point touch
- Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter board is required for CM3/3+
- DSI interface, refresh rate up to 60Hz.
- Supports Raspbian/Ubuntu/Kali and WIN 10 IoT, driver-free.
- Support backlight adjusts by software.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a Waveshare 17.78 CM (7 inch) 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface. Toughened glass capacitive touch panel. It supports Raspberry Pi and can also be used as a computer monitor. This Display is Used with Raspberry Pi, supports Raspbian, Ubuntu, WIN 10 IoT, driver free. Hardware connection: Connect the DSI interface of 7inch DSI LCD to the DSI interface of Raspberry Pi. For easy use, you can fix the Raspberry Pi on the backside of the 7inch DSI LCD with screws Note: Raspberry pi is not Included in this kit, You have to buy it Separately Features: 7 inch TFT screen. 800480 hardware resolution Capacitive touch panel, support 5-point touch Supports Pi 4B/3B+/3A+/3B/2B/B+/A+. Another adapter board is required for CM3/3+ DSI interface, refresh rate up to 60Hz. Supports Raspbian/Ubuntu/Kali and WIN 10 IoT, driver-free. Support backlight adjusts by software. Package Includes: 1 x Waveshare 17.78 CM (7 inch) 800 x 480 Capacitive Touch Display for Raspberry Pi, DSI Interface Specifications :- Display Size (inch) 7 Display Resolution 800480 Display Port DSI Touch Type Capacitive Touch Points 5 Length (mm) 192.96 Width (mm) 110 Height (mm) 40 Weight (gm) 300
