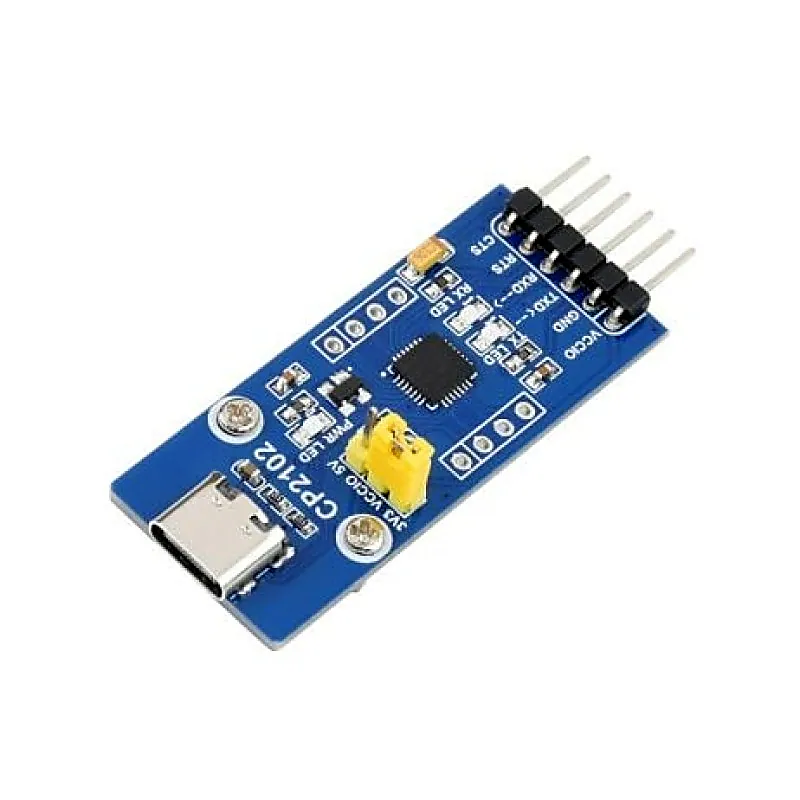

Waveshare CP2102 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

CP2102 USB to UART is a breakout board supporting USB Type-C. The board features theCP2102 chip which is dedicated for USB to UART Bridge through virtual COM port drivers that are needed for device functioning to facilitate host communication with CP210x based devices. These devices can also interface with a host using the direct access driver. These drivers make the USB device appear as an additional COM port available to the system. Features: Supports Mac OS, Linux, Android, WinCE, Windows 7/8/10/11 Voltage output support: 5V or 3.3V Integrated USB protection device: SP0503 3x LED indicators: TXD LED, RDX LED, POWER LED Pins accessible on pin-headers: TXD, RXD, RTS, CTS Other pins are accessible on drilled holes, easily connected to user application system Package Includes: 1 x CP2102 USB UART Board (Type C) 1 x 6-pin custom connector jumper wire 2 x 4-pin male pin header & 4-pin female pin header Specifications :- Input Voltage (V) 3.3~5 EEPROM 1024Bytes UART Baudrate 300 bps to 1 Mbits Operating Temperature Range (C) -40 to 85 Length (mm) 50 Width (mm) 20 Height (mm) 15 Weight (gm) 6
