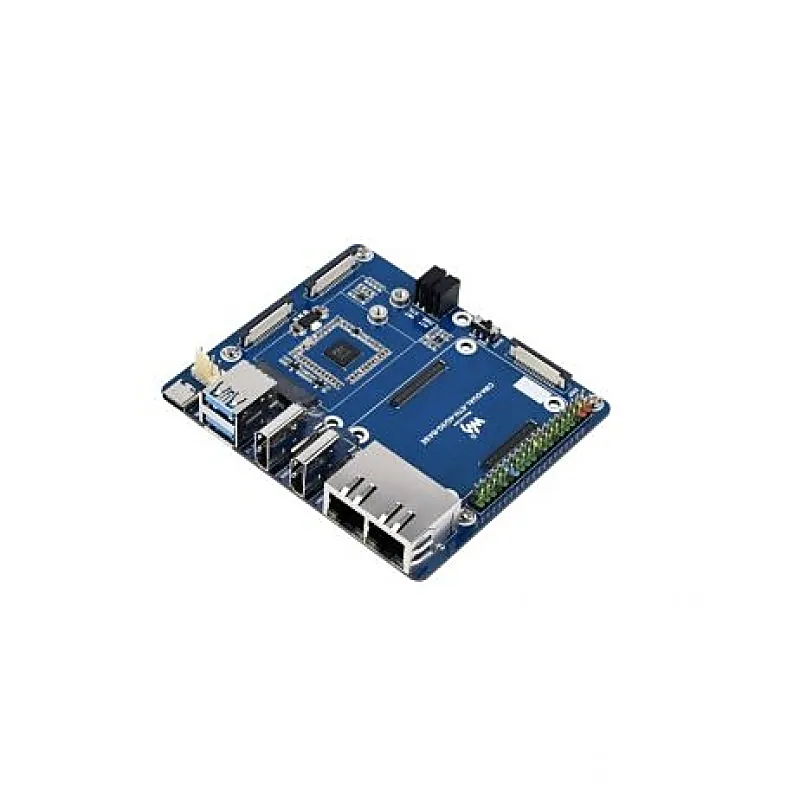

Waveshare Dual Gigabit Ethernet 5G/4G Base Board Designed for Raspberry Pi Compute Module 4
Waveshare Dual Gigabit Ethernet 5G/4G Base Board Designed for Raspberry Pi Compute Module 4
This is a Waveshare Dual Gigabit Ethernet 5G/4G Base Board Designed for Raspberry Pi Compute Module 4. It is suitable for evaluating the Raspberry Pi CM4 or being integrated into end products. Whats on Board: CM4 socket: suitable for all variants of Compute Module 4 40PIN GPIO header: for connecting
+ 18% GST (added at checkout)
In stock — 1 units ready
- CM4 socket: suitable for all variants of Compute Module 4
- 40PIN GPIO header: for connecting sorts of HATs
- RJ45 Gigabit Ethernet dual RJ45 Gigabit Ethernet, 10/100/1000M compatible ETHERNET 0: CM4 original ETH ETHERNET 1: USB extended ETH
- USB 3.2 ports: 3x USB 3.2 Gen1, for connecting sorts of USB devices
- HDMI connector s: 2x HDMI, supports 4K 30fps output
- CAM: 2x MIPI CSI camera ports
- DC power supply: 7~36V DC wide voltage range power input
- Dual LED indicators red: Raspberry Pi power indicator green: Raspberry Pi operating status indicator
- Micro SD card slot: for connecting a Micro SD card with pre-burnt image (Lite variant ONLY)
- FAN header: for connecting cooling fan, allows speed adjustment and measurement
- DISP0 MIPI DSI display port
- USB SLAVE port: for burning system image into Compute Module 4 eMMC variants
- RTC battery holder: supports CR1220 button cell
- RTC interruption configuration PI-RUN: CM4 will reboot on RTC interruption GN-EN: CM4 power-down on RTC interruption D4: D4 pin is triggered on RTC interruption
- IO-VREF selection: set the CM4 IO logic level as 3.3V or 1.8V
- FAN power supply selection: select 5V or 12V power to drive the fan
- System function configuration BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card
- RTC/FAN I2C bus selection SDA0/SCL0: I2C-10 is shared with CSI/DSI GPIO3/2: I2C-1 is shared with 40PIN header
- RTL8153: USB Gigabit Ethernet chip
- EMC2301: fan controller allows fan speed adjustment and measurement
- VL805: USB 3.0 HUB
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is a Waveshare Dual Gigabit Ethernet 5G/4G Base Board Designed for Raspberry Pi Compute Module 4. It is suitable for evaluating the Raspberry Pi CM4 or being integrated into end products. Whats on Board: CM4 socket: suitable for all variants of Compute Module 4 40PIN GPIO header: for connecting sorts of HATs RJ45 Gigabit Ethernet dual RJ45 Gigabit Ethernet, 10/100/1000M compatible ETHERNET 0: CM4 original ETH ETHERNET 1: USB extended ETH USB 3.2 ports: 3x USB 3.2 Gen1, for connecting sorts of USB devices HDMI connector s: 2x HDMI, supports 4K 30fps output CAM: 2x MIPI CSI camera ports DC power supply: 7~36V DC wide voltage range power input Dual LED indicators red: Raspberry Pi power indicator green: Raspberry Pi operating status indicator Micro SD card slot: for connecting a Micro SD card with pre-burnt image (Lite variant ONLY) FAN header: for connecting cooling fan, allows speed adjustment and measurement DISP0 MIPI DSI display port USB SLAVE port: for burning system image into Compute Module 4 eMMC variants RTC battery holder: supports CR1220 button cell RTC interruption configuration PI-RUN: CM4 will reboot on RTC interruption GN-EN: CM4 power-down on RTC interruption D4: D4 pin is triggered on RTC interruption IO-VREF selection: set the CM4 IO logic level as 3.3V or 1.8V FAN power supply selection: select 5V or 12V power to drive the fan System function configuration BT_DIS: Bluetooth disabled, for CM4 with antenna variant ONLY WiFi_DIS: WiFi disabled, for CM4 with antenna variant ONLY WP_DIS: boot mode switch, ONLY be used when NOT booted from eMMC or SD card RTC/FAN I2C bus selection SDA0/SCL0: I2C-10 is shared with CSI/DSI GPIO3/2: I2C-1 is shared with 40PIN header RTL8153: USB Gigabit Ethernet chip EMC2301: fan controller allows fan speed adjustment and measurement VL805: USB 3.0 HUB Useful link: For Software setup, please follow this tutorial . Package Includes: 1 x Waveshare Dual Gigabit Ethernet 5G/4G Base Board
