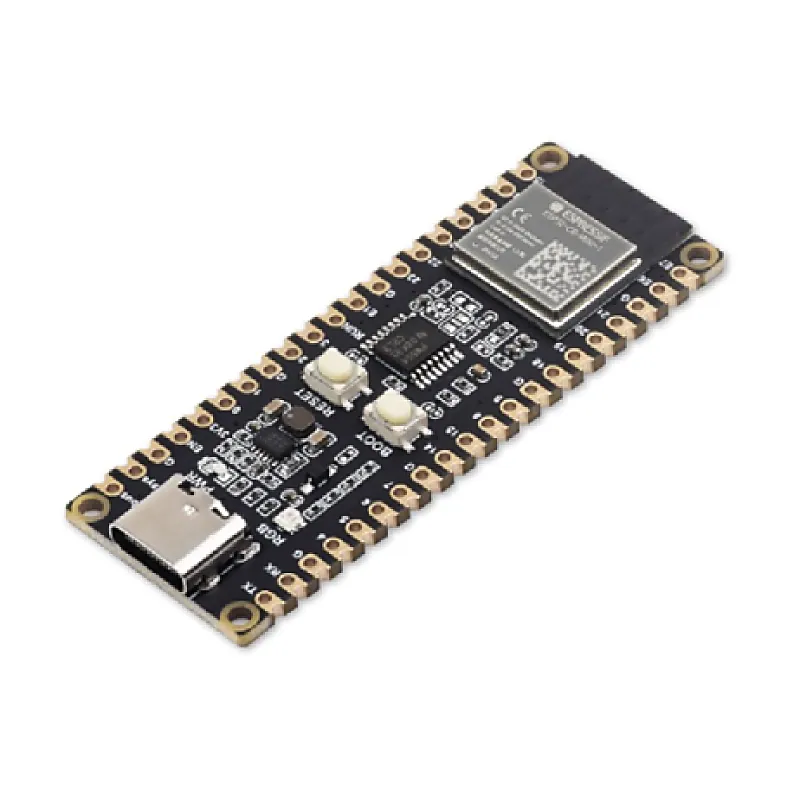

Waveshare ESP32-C6 Microcontroller, WiFi 6 Development Board, 160MHz Single-core Processor, ESP32-C6-MINI-1 Module

Adopts ESP32-C6-MINI-1 as the main chip, which is equipped with a RISC-V 32-bit single-core processor with 160MHz running frequency, built-in 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash; Onboard MP28164 high efficiency DC-DC buck-boost chip with load current up to 2A, ensuring the safety of the product. You can choose ESP-IDF, Arduino or other development environments in software so that you can easily and quickly get started and apply it to the product. Features : Adopts ESP32-C6-MINI-1 chip with RISC-V 32-bit single-core processor, capable of running at 160 MHz Integrated 320KB ROM, 512KB HP SRAM, 16KB LP SRAM and 4MB flash Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance. Type-C connector, easier to use Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip with load current up to 2A 20 multi-function GPIO pins and 7 expanded IO pins Rich peripheral interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM, etc. to achieve various functions flexibly Castellated module allows soldering directly to carrier boards Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios Supports most of the Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development Specifications : Processor: RISC-V 32-bit single-core ROM: 320KB SRAM: 512KB HP SRAM: 16KB LP Flash memory: 4MB Connector: Type-C Package Includes: 1 x ESP32-C6-Pico 1 x 40PIN male pinheader (black)
