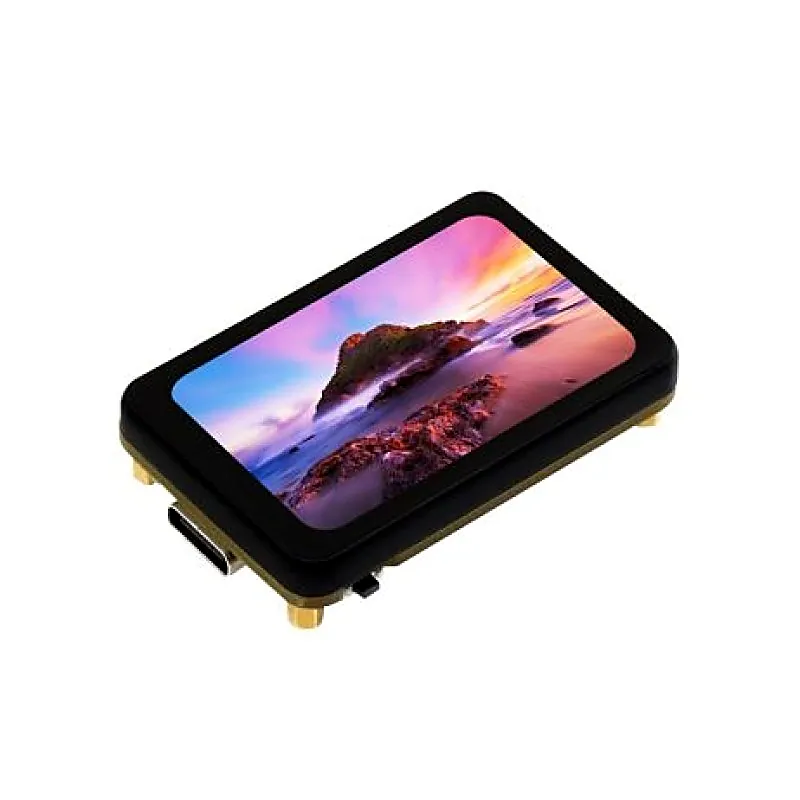

Waveshare ESP32-S3 1.64inch 280456 AMOLED Touch Display Development Board

This product adopts ESP32-S3R8 chip with 2.4GHz Wi-Fi and Bluetooth BLE 5 support, and integrates high-capacity Flash and PSRAM. Onboard 1.64inch AMOLED display, capable of smoothly running GUI programs such as LVGL. Onboard rich peripheral resources such as QMI8658 6-axis IMU, TF card slot, and Lithium battery header, etc., while also providing USB, UART, I2C and multiple MUX_GPIO interfaces for strong expandability. It is ideal for the quick development of the HMI and other ESP32-S3 applications. Features: Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna. The device allows switching to use an external antenna by resoldering an onboard resistor Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM Onboard 1.64inch AMOLED display, QSPI interface, 280 456 resolution, 16.7M color Supports capacitive touch function, controlled via I2C interface Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for motion gesture detection, step counting, and more Onboard RST button, along with programmable BOOT button for customizable functionality and flexible development Onboard 3.7V MX1.25 Lithium battery recharge/discharge header Onboard TF card slot, enabling external storage for pictures or files Onboard USB Type-C port for power supply, program downloading, and debugging, making development more convenient Adapting I2C, UART, and USB interfaces, for connecting peripherals and debugging Adopts CNC-machined metal frame for better protection, nice looking and more durable Package Includes: 1 x Waveshare ESP32-S3 1.64inch 280456 AMOLED Touch Display Development Board
