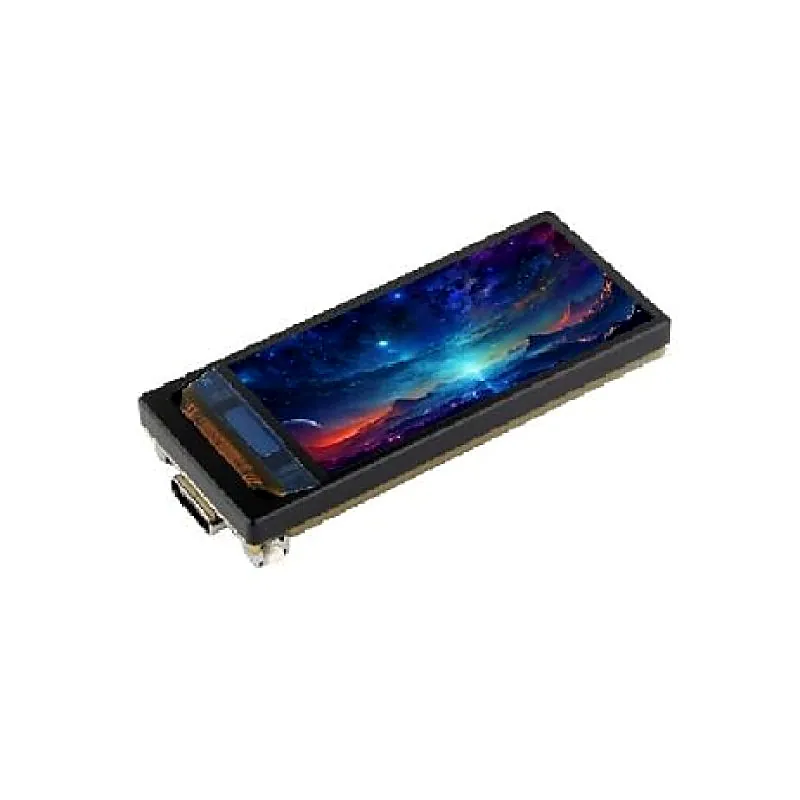

Waveshare ESP32-S3 1.91inch AMOLED Display Development Board, 240536, 32-bit LX7 Dual-core Processor, Up to 240 MHz Frequency, Accelerometer And Gyroscope Sensor, ESP32 With Display

The Waveshare ESP32-S3 1.91inch AMOLED Displayis designed for rapid development of USB, IoT, and HMI applications. It features a high-performance ESP32-S3 chip with a dual-core LX7 processor running up to 240 MHz, along with 2.4GHz WiFi and Bluetooth 5.0 support. The board comes with a 1.91-inch AMOLED display (240536 resolution), and is equipped with an onboard 6-axis IMU (accelerometer + gyroscope) for motion detection. It supports USB Type-C, TF card storage, and can run GUI programs using the LVGL library. Features: ESP32-S3 Chip: Dual-core LX7 processor up to 240 MHz. AMOLED Display: 1.91-inch, 240536 resolution, 16.7M colors. Wi-Fi & Bluetooth: Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE). IMU: Built-in QMI8658 6-axis sensor for motion and gesture tracking. Expandable: Compatible with Pico header and external peripherals. Battery & Storage: Supports 3.7V lithium battery, TF card slot for additional storage. USB-C: Onboard USB Type-C for power and programming. Metal Case: Durable CNC metal enclosure with an oxidation dull-polish surface. Application: HMI Development: Ideal for developing Human-Machine Interface systems. IoT Projects: Suitable for wireless communication applications using Wi-Fi/Bluetooth. Motion Sensing: Leverage the accelerometer and gyroscope for motion-based controls. Package include: 1 x Waveshare ESP32-S3 1.91inch AMOLED Display Development Board
