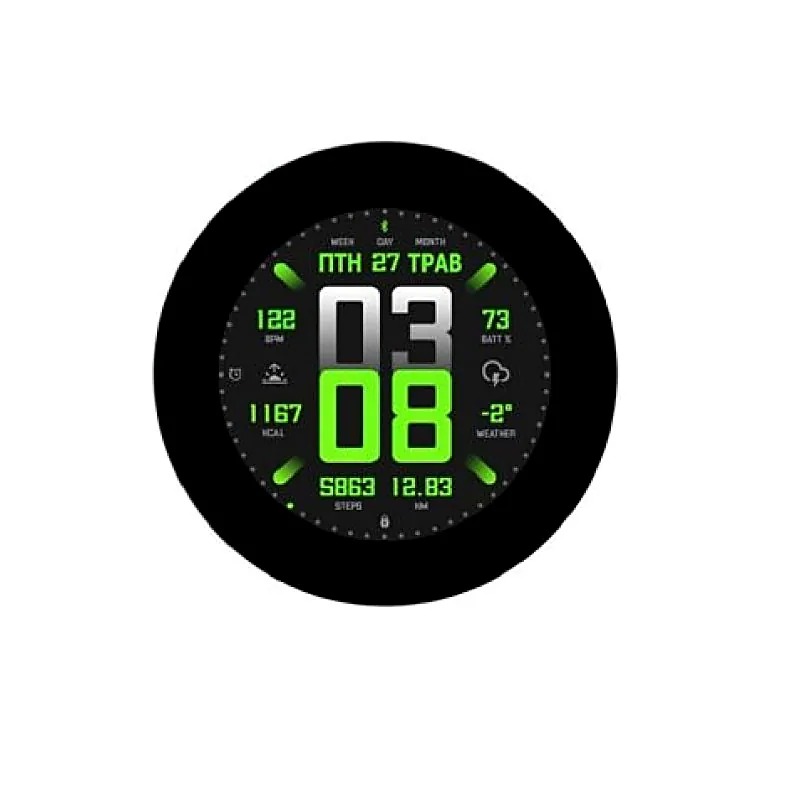

Waveshare ESP32-S3 2.1inch Capacitive Touch Round Display Development Board, 480480, IPS, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, 262K Color, ESP32 With Display

The ESP32-S3 2.1inch Capacitive Touch Round Display Development Board is a compact microcontroller development board featuring 2.4GHz Wi-Fi and Bluetooth BLE 5 support. It integrates high-capacity memory with a 2.1-inch capacitive touch screen, making it ideal for quick development of Human-Machine Interfaces (HMI) and various ESP32-S3 applications. Useful Link: https://www.waveshare.com/wiki/ESP32-S3-Touch-LCD-2.1 Features: Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz Connectivity: 2.4GHz Wi-Fi and Bluetooth 5 (LE) Memory: 16MB Flash, 8MB PSRAM Display: 2.1-inch, 480 480 resolution, 262K colors Touch Control: 5-point capacitive touch via I2C Peripherals: GPIO, UART, I2C, USB, QMI8658 6-axis sensor Power Management: Multiple modes, USB Type-C Expandability: TF card slot and RTC chip Specification: Processor:Xtensa 32-bit LX7 dual-core, up to 240MHz Connectivity:Wi-Fi: 2.4GHz (802.11 b/g/n),Bluetooth: Bluetooth 5 (LE) with onboard antenna Memory:Flash: 16MB,PSRAM: 8MB,SRAM: 512KB,ROM: 384KB Display:Size: 2.1 inches Resolution,480 480 pixels Color,Depth: 262K colors (IPS technology) Touch Support:Capacitive touch control via I2C, with interrupt support Interfaces:GPIO, UART, I2C, USB, TF card slot Power Supply:USB Type-C for power and data transfer Operating Temperature:0 to 65 Dimensions:Outline dimensions: to be specified based on design Package include: 1 x ESP32-S3-Touch-LCD-2.1 1 x SH1.0 12PIN cable ~100mm 1 x SH1.0 4PIN cable ~100mm (2pcs)
