Waveshare FT232 USB UART Board (Micro-USB)

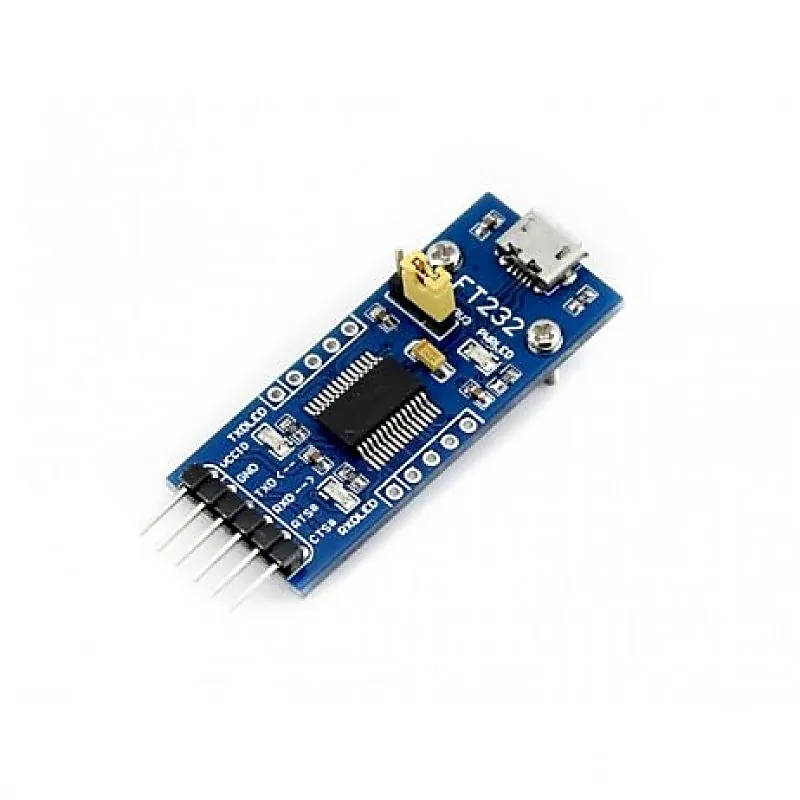

This is the FT232 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB bus and will appear as a standard COM port. Pin connections of FT232 USB UART Board: VCCIO 3.3V or 5V output (the module is powered from USB, the onboard jumper should be shorted to 3.3V or 5V) GND GND TXD MCU.RX (signal direction: MCU.RX << FT232 << PC.TX) RXD MCU.TX (signal direction: MCU.TX >> FT232 >> PC.RX) RTS MCU.CTS (signal direction: MCU.CTS << FT232 << PC.RTS) CTS MCU.RTS (signal direction: MCU.RTS >> FT232 >> PC.CTS) This breakout also allows you to connect the TX/RX pins of your favorite microcontroller or serial application to the RX/TX pins of the breakout, creating a simple serial cable replacement. Features: Original FT232RL onboard Supports Mac, Linux, Android, WinCE, Windows 7/8/8.1/10 3 power mode: 5V output, 3.3V output, or powered by target board (3.3V-5V) 3 LEDs: TXD LED, RXD LED, POWER LED TXD, RXD, RTS#, CTS#: connected to the onboard soldered pin headers The other Pins: accessible on the drill holes (separate pin headers are also provided for easily connecting to the user system, the pitch is compatible with breadboards) Package Includes: 1 x FT232 USB UART Board (micro) 2 x 5-pin male pin header & 5-pin female pin header x 2 1 x 6-pin custom connector jumper wire Specifications :- Operating Voltage (VDC) 3.3 ~ 5 No. of Pins 6 Length (mm) 44 Width (mm) 19 Height (mm) 15 Weight (gm) 13
