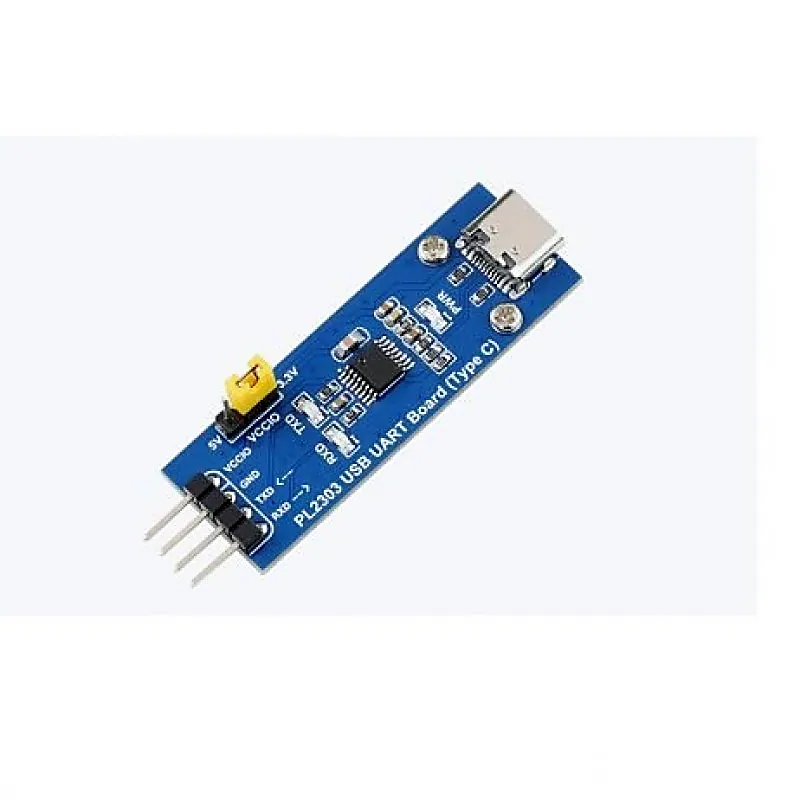

Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector
Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector
This is the PL2303 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port. Pin connections of PL2303 USB UART Board: VCCIO 3.3V or 5V output (the modu
+ 18% GST (added at checkout)
In stock — 6 units ready
- VCCIO 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
- GND GND
- TXD MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
- RXD MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)
- Adopts PL2303GS new version device
- Supports windows XP/7/8/10/11/
- 3x LED indicators: TXD, RXD, PWR
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This is the PL2303 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port. Pin connections of PL2303 USB UART Board: VCCIO 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V) GND GND TXD MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX) RXD MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX) Features: Adopts PL2303GS new version device Supports windows XP/7/8/10/11/ 3x LED indicators: TXD, RXD, PWR Package Includes: 1 x PL2303 USB UART Board (Type C) 1 x 4-pin custom connector jumper wire Specifications :- Operating Voltage(V) 3.3 to 5 No. of Pins 4
