Waveshare RP2350 1.43inch AMOLED Display Development Board, 466466, SPI Interface Round Display, Onboard Accelerometer And Gyroscope Sensor, RTC Chip without case

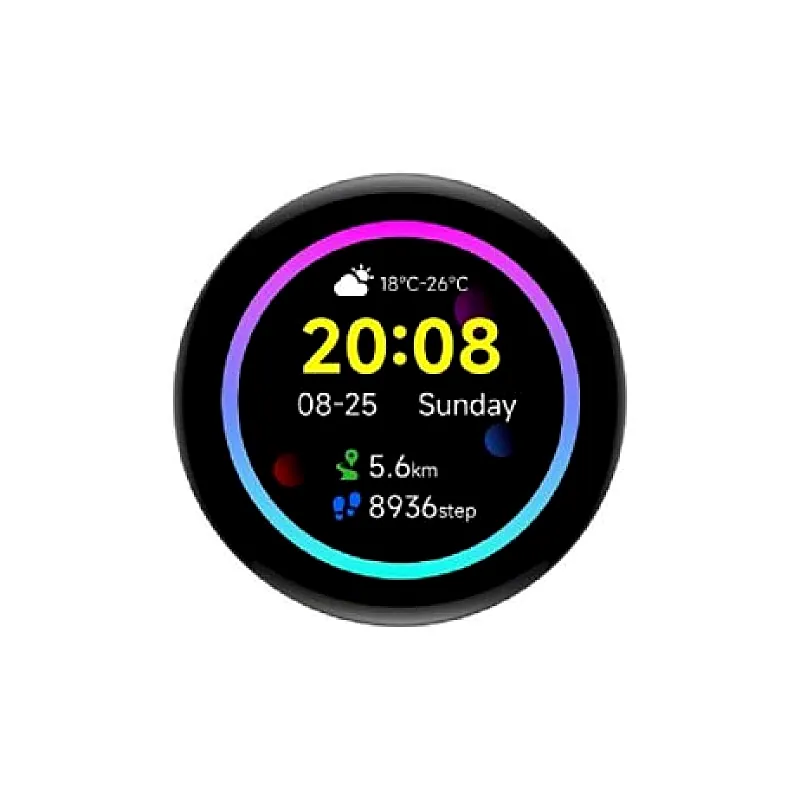

1.43inch AMOLED Display Development Board product adopts RP2350 chip with built-in high-capacity Flash memory, onboard 1.43inch AMOLED display, capable of smoothly running GUI applications such as LVGL. Onboard rich peripheral resources such as RTC chip, QMI8658 6-axis IMU, TF card slot, Lithium battery header, etc., and reserved USB, UART, I2C and GPIO pin headers, offering strong expandability. It is suitable for the quick development of the RP2350 HMI applications. Features : Adopts unique dual-core and dual-architecture design: dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, flexible clock running up to 150 MHz 520KB of SRAM, and 16MB onboard Flash memory Onboard 1.43inch AMOLED display, SPI interface, 466 466 resolution, 16.7M color Supports capacitive touch function controlled via I2C interface, with interrupt support Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc. Onboard PCF85063 RTC chip with reserved SH1.0 battery header (supports charging) for RTC function requirement Onboard RST and BOOT side buttons Onboard 3.7V MX1.25 Lithium battery recharge/discharge header Onboard TF card slot for external storage of pictures or files Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use Onboard UART and I2C SH1.0 4PIN connector, reserved 2 14PIN 1.27mm pitch GPIO headers Optional for CNC metal case, with clear and colorful label on the back, nice looking and easy to carry Package Includes: 1 x RP2350-Touch-AMOLED-1.43 2 x SH1.0 4PIN cable ~100mm
