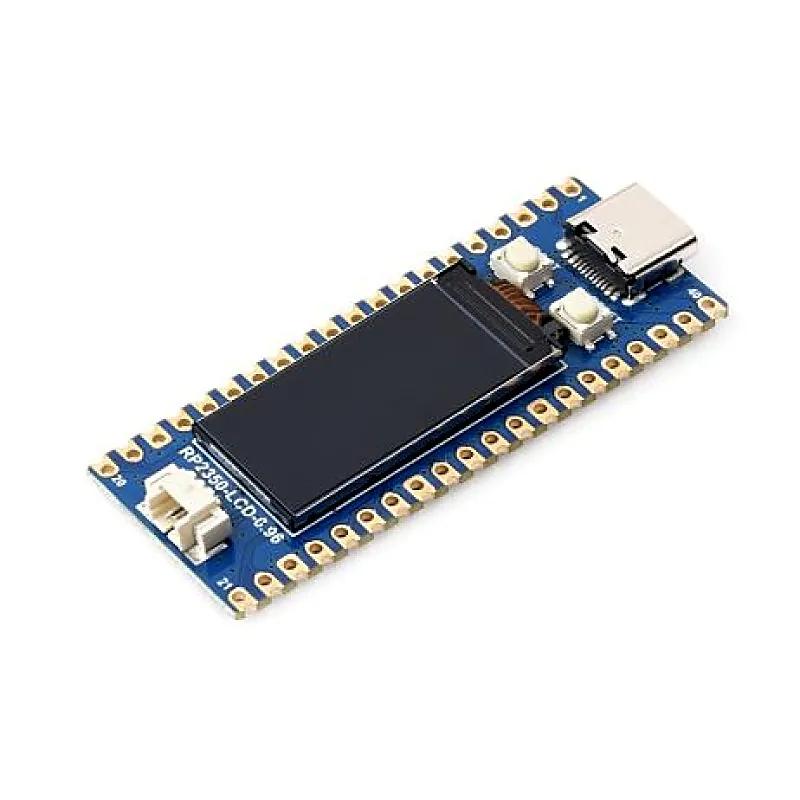

Waveshare RP2350-LCD-0.96 Development Board, With 0.96inch LCD Display, Based On RP2350A Dual-core &Dual-architecture Microcontroller

Waveshare RP2350-LCD-0.96 Development Board is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. Waveshare RP2350-LCD-0.96 Development Board incorporates Raspberry Pis RP2350A microcontroller chip, the same as the one on Raspberry Pi Pico 2. For software development, either Raspberry Pis C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly. Features: RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz 520KB of SRAM, and 4MB of on-board Flash memory USB-C connector, keeps it up to date, easier to use 0.96inch 16080 pixels 65K colorful IPS LCD display Lithium battery recharge/discharge header, suitable for mobile devices Onboard DC-DC chip MP28164, high efficiency DC-DC buck-boost chip, maximum 2A load current Castellated module allows soldering directly to carrier boards USB 1.1 with device and host support Low-power sleep and dormant modes Drag-and-drop programming using mass storage over USB 26 multi-function GPIO pins 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels Accurate clock and timer on-chip Temperature sensor Accelerated floating-point libraries on-chip 12 Programmable I/O (PIO) state machines for custom peripheral support Package Includes: 1 x Waveshare RP2350-LCD-0.96 Development Board
