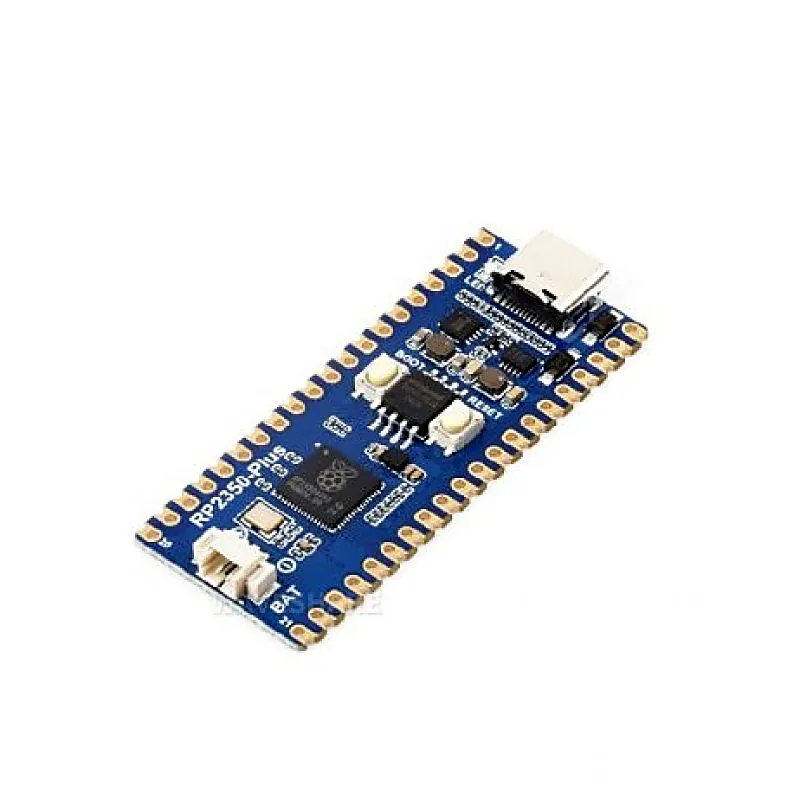

Waveshare RP2350-Plus Development Board, A Low-cost, High-performance Pico-like MCU Board Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller

Waveshare RP2350-Plus Development Board, A Low-cost, High-performance Pico-like MCU Board Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller

Waveshare RP2350-Plus Development Board, A Low-cost, High-performance Pico-like MCU Board Based On Raspberry Pi RP2350A Dual-core & Dual-architecture Microcontroller Features : Dual-core Design: Combines Arm Cortex-M33 and Hazard 3 RISC-V processors. Performance: Up to 150 MHz clock speed. Memory: 5

+ 18% GST (added at checkout)

In stock — 5 units ready

• Dual-core Design: Combines Arm Cortex-M33 and Hazard 3 RISC-V processors.
• Performance: Up to 150 MHz clock speed.
• Memory: 520KB SRAM, 4MB on-board Flash.
• Connectivity: USB 1.1 (device/host support), Type-C connector.
• Power: DC-DC buck-boost chip (MP28164) for up to 2A load current, lithium battery recharge/discharge header.
• GPIO: 26 multi-function pins.
• Peripherals: 2 SPI, 2 I2C, 2 UART, 4 ADC, 16 PWM channels, 12 PIO state machines.
• Additional Features: Temperature sensor, accurate clock/timers, accelerated floating-point libraries.
• Programming: Drag-and-drop via mass storage over USB.
• Low Power: Sleep and dormant modes for energy efficiency.
• Development Board: Waveshare RP2350-Plus is a low-cost, high-performance board for development.
