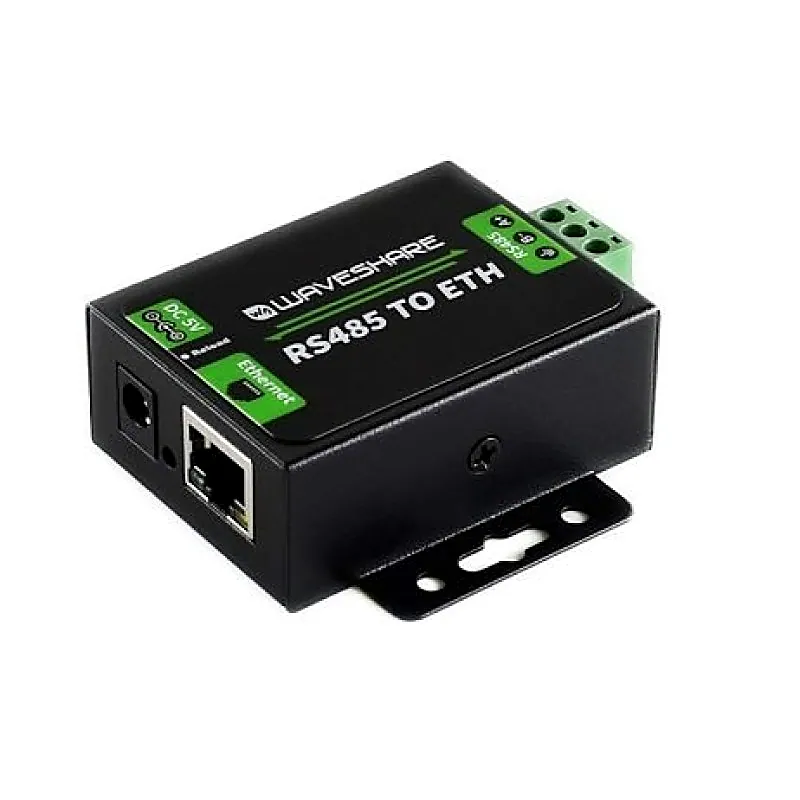

Waveshare RS485 to Ethernet Converter (Adapter with EU Plug)
Waveshare RS485 to Ethernet Converter (Adapter with EU Plug)
The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet. It can be configured via a webpage, AT commands, serial protocol, and network protocol provides configuration protocol that can be integrated into your own software. It supports customized heartbeat pac
+ 18% GST (added at checkout)
In stock — 61 units ready
- M0 series 32-bit ARM processor, fast speed, high efficiency
- 10/100M Auto-MDI/MDIX Ethernet interface, regardless of cross-over or straight-through cable
- Configurable RS485 baud rate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
- Available working modes: TCP Server, TCP Client, UDP Server, UDPClient, HTTPDClient (supports GET and POST)
- Supports DNS domain name resolution, configurable DNS server
- Supports DHCP, auto-obtained IP, or static IP
- Firmware is upgradable via the network
- Restore to factory settings via software and/or hardware
- Comes with a default MAC address, which is customizable
- Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software
- Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet. It can be configured via a webpage, AT commands, serial protocol, and network protocol provides configuration protocol that can be integrated into your own software. It supports customized heartbeat packets and customized registration packets which makes sure the connection is truthful, as well as actively retrieving sensor data and auto passing the registered packet as identifier after the connection is established so that different devices can be distinguished. The RS485 to Ethernet Converter comes with several working modes such as TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST). etc. Features: M0 series 32-bit ARM processor, fast speed, high efficiency 10/100M Auto-MDI/MDIX Ethernet interface, regardless of cross-over or straight-through cable Configurable RS485 baud rate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space Available working modes: TCP Server, TCP Client, UDP Server, UDPClient, HTTPDClient (supports GET and POST) Supports DNS domain name resolution, configurable DNS server Supports DHCP, auto-obtained IP, or static IP Firmware is upgradable via the network Restore to factory settings via software and/or hardware Comes with a default MAC address, which is customizable Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc. Package Includes: 1 x RS485 to Ethernet Converter for EU 1 x 5V 5V Power Adapter with EU Input Plug Specifications :- Recommended Power Supply 5.0 ~ 7.0V Operating Current 150mA (@5V) Power Consumption (Watt) <1W Ethernet Connector: 4-pin RJ45 Communication rate: 10/100Mbps Interface protection: 1.5KV electromagnetic isolation RS485 Connector: screw terminal (A+, B-, GND) Baudrate: 600bps~230.4Kbps Length (mm) 69.6 Width (mm) 63.5 Height (mm) 25 Weight (gm) 225
