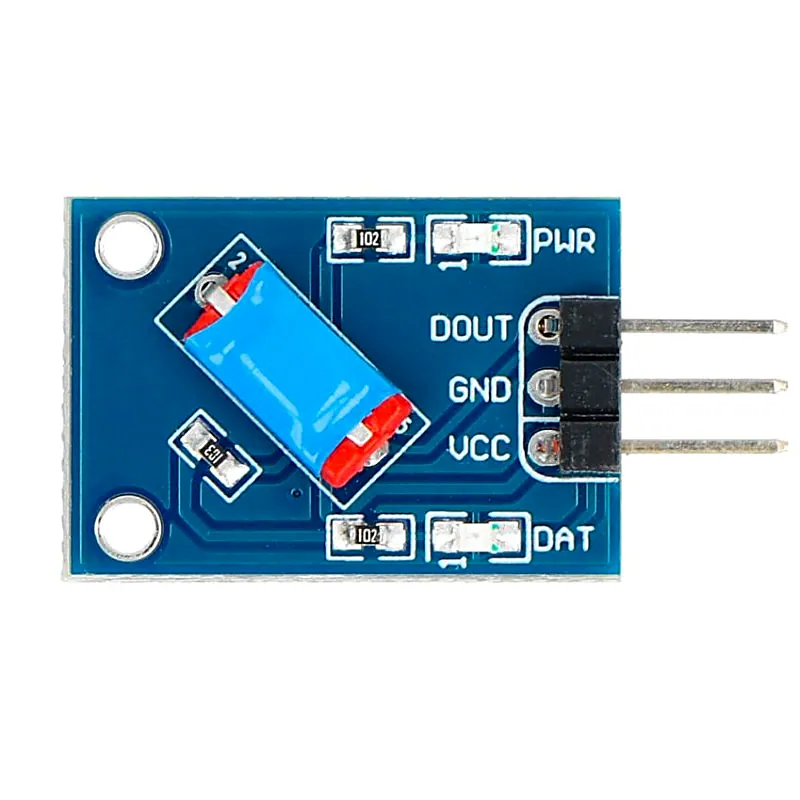

Waveshare Tilt Sensor
Waveshare Tilt Sensor
This tilt sensor module is used for inclination indication. It is based on a mercury switch that contains a blob of mercury. When the body moves to a specific angle (usually around 30°), it shorts two pins and thus closes the circuit and tilt is detected and the signal output is high. The simplicity
+ 18% GST (added at checkout)
In stock — 2 units ready
- Shake detection
- Guard alarm
- Smart car
- Electric bricks
- Detects shake signal
- Signal output indicator
- Output Type : TTL
- Mounting Hole Diameter (mm):2.0mm
- Interface:Digital Output
- GND
- VCC
- Dimensional Accuracy (mm):19.0mm x 16.0mm
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
This tilt sensor module is used for inclination indication. It is based on a mercury switch that contains a blob of mercury. When the body moves to a specific angle (usually around 30°), it shorts two pins and thus closes the circuit and tilt is detected and the signal output is high. The simplicity of this sensor makes them popular for toys, motion detection alarms, gadgets and appliances. Applications:- Shake detection Guard alarm Smart car Electric bricks Features:- Detects shake signal Signal output indicator Specification:- Output Type : TTL Mounting Hole Diameter (mm):2.0mm Interface:Digital Output GND VCC Dimensional Accuracy (mm):19.0mm x 16.0mm Package Includes:- 1 x Waveshare Tilt Sensor 1 x 3-pin custom connector jumper wire
