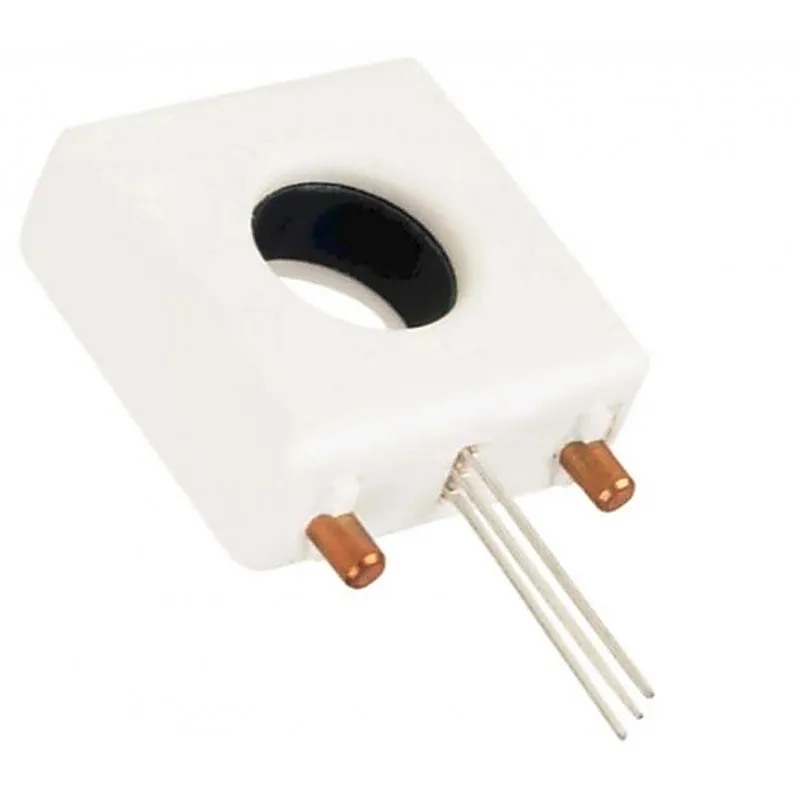

WCS1700 - 70A Hall Effect Base Linear Current Sensor
WCS1700 - 70A Hall Effect Base Linear Current Sensor
The WCS1700 consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a diameter 9.0mm through hole. Users can use system’s own electric wire by pass it through this hole to measure passing current. This design allows system designers to monitor any
+ 18% GST (added at checkout)
In stock — 271 units ready
- Supply Current : 3.5~6.0 mA
- Supply Voltage : 3.0 ~12 V
- Bandwidth : 23kHz
- Conductor Through Hole : 9.0mm2
- Sensitivity : 33mV/A
- Temperature Drift : +/-0.5mV/C
- Operating Temperature : -20~125C
- Zero Current Volt: 2.5V
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
The WCS1700 consists of a precise, low-temperature drift linear hall sensor IC with temperature compensation circuit and a diameter 9.0mm through hole. Users can use system’s own electric wire by pass it through this hole to measure passing current. This design allows system designers to monitor any current path without breaking or changing original system layout at all. Any current flowing through this hole will generate a magnetic field which is sensed by the integrated Hall IC and converted into a proportional voltage. Specifications:- Supply Current : 3.5~6.0 mA Supply Voltage : 3.0 ~12 V Bandwidth : 23kHz Conductor Through Hole : 9.0mm2 Sensitivity : 33mV/A Temperature Drift : +/-0.5mV/C Operating Temperature : -20~125C Zero Current Volt: 2.5V Package Includes:- 1 x WCS1700 - 70A Hall Effect Base Linear Current Sensor
