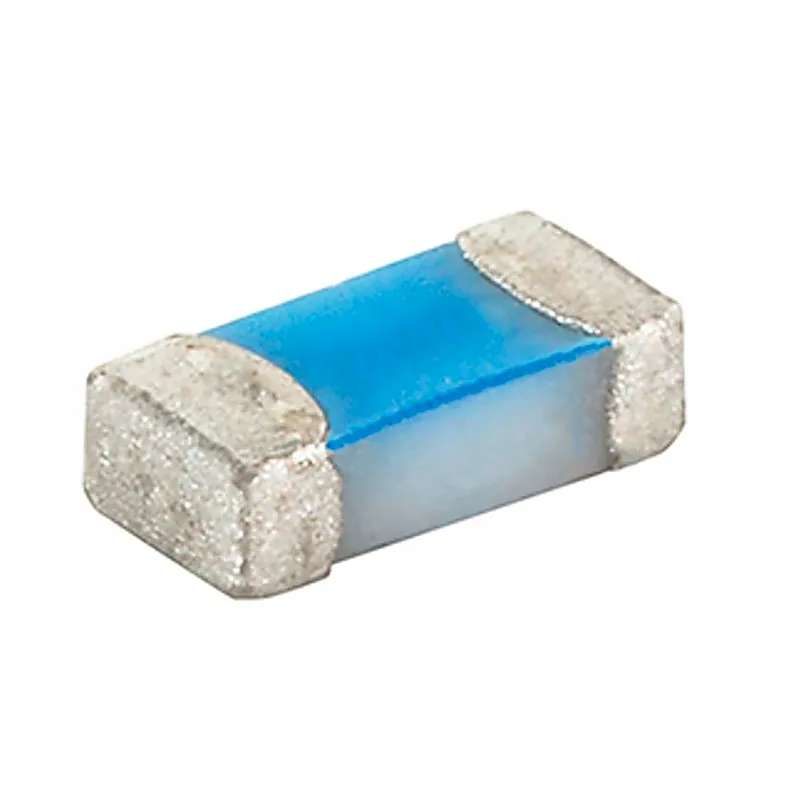

WDS0603-0.50F 63V 500mA Weite (0603 SMD) Fast Acting Fuse
WDS0603-0.50F 63V 500mA Weite (0603 SMD) Fast Acting Fuse
WT0603-F Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses. Features:-
+ 18% GST (added at checkout)
In stock — 2254 units ready
- High inrush current withstanding capability
- Compatible with reflow and wave solder
- Excellent environmental integrity
- One time positive disconnect
- Lead Free and Halogen free material
- Portable memory
- LCD monitors
- Disk drives
- PDAs
- Digital cameras
- DVDs
- Brand : WEITE
- Fast Acting Fuse
- Hold Current: 500mA
- Maximum Voltage: 63V
- Mounting Type: SMD 0603
- Fuse Type : SMD
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
WT0603-F Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses. Features:- High inrush current withstanding capability Compatible with reflow and wave solder Excellent environmental integrity One time positive disconnect Lead Free and Halogen free material Applications:- Portable memory LCD monitors Disk drives PDAs Digital cameras DVDs Specification:- Brand : WEITE Fast Acting Fuse Hold Current: 500mA Maximum Voltage: 63V Mounting Type: SMD 0603 Fuse Type : SMD Package Includes:- 1 x WDS0603-0.50F 63V 500mA Weite (0603 SMD) Fast Acting Fuse
