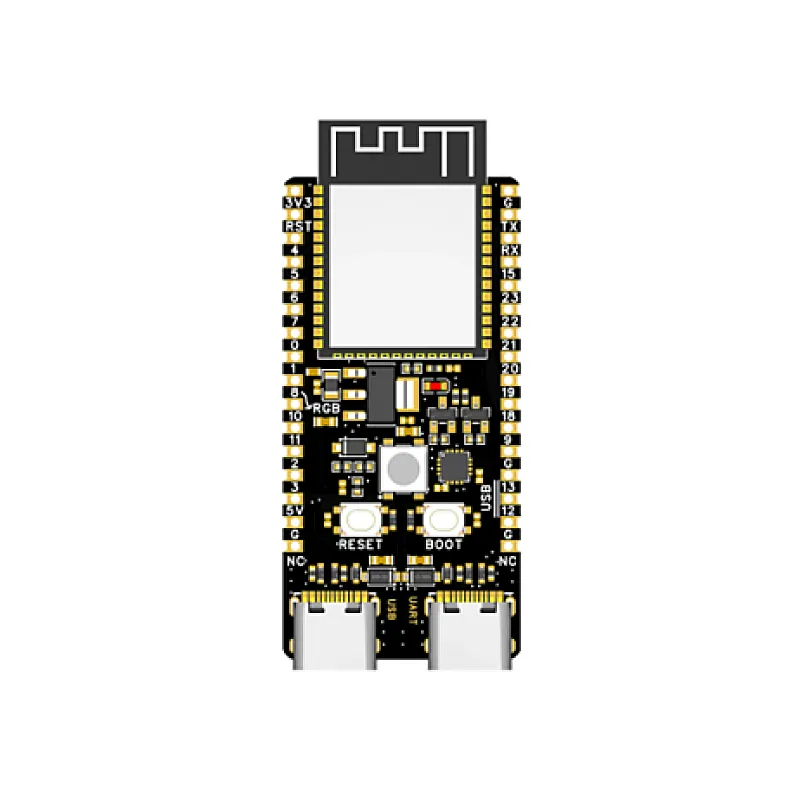

WeAct Studio ESP32-C6-A-N4 Development Board ESP32C6 Minimum System Board ESP32 Core RISC-V Espressif IoT WiFi6 Bluetooth Zigbee

WeAct Studio ESP32-C6-A-N4 Development Board ESP32C6 Minimum System Board ESP32 Core RISC-V Espressif IoT WiFi6 Bluetooth Zigbee

The WeAct ESP32-C6 Development Board is a feature-rich solution designed to meet the demands of IoT projects, offering high performance, versatile connectivity, ample memory, and a compact design. Features: Equipped with a 32-bit RISC-V single-core processor running at 160MHz, ensuring swift executi

+ 18% GST (added at checkout)

In stock — 5 units ready

• Equipped with a 32-bit RISC-V single-core processor running at 160MHz, ensuring swift execution of tasks.
• Supports Wi-Fi IEEE 802.11 ax 2.4GHz, Bluetooth LE 5, and IEEE 802.15.4 (Zigbee and Thread), offering versatile connectivity options.
• Features 512KB SRAM and 320KB ROM, providing sufficient memory for data storage and program execution.
• Offers 30 or 22 GPIOs, 3x SPI, 2x UART, 1x I2C, RMT, LED PWM 6ch, 1x 12-bit ADC with 7ch, TWAI, USB Serial/JTAG, ETM, MCPWM, and SDIO Slave, facilitating easy integration with peripherals.
• With dimensions of 25.5mm x 51.8mm, the ESP32-C6 Development Board boasts a compact form factor suitable for various IoT applications.
