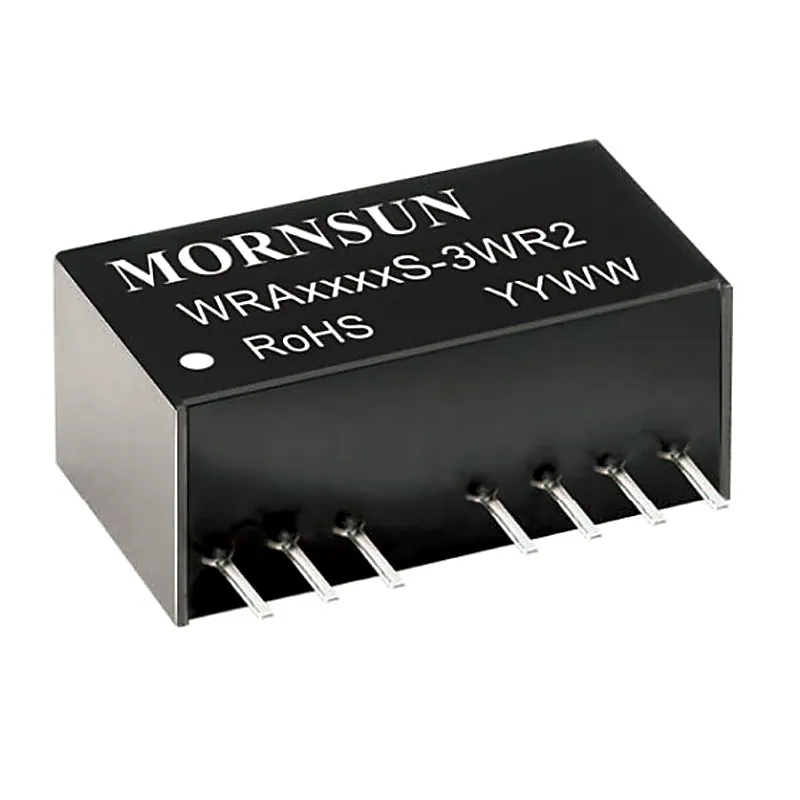

WRA1212S-3WR2 Mornsun 12V to ±12V DC-DC Converter 3W Power Supply Module - Ultra Compact SIP Package

WRA1212S-3WR2 series are isolated 3W DC-DC converter products with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP-8 plastic package, and features high efficiency, operating ambient temperature of -40℃to+85℃, remote control, and continuous short-circuit protection. The smaller size and cost-effective design make the converter an ideal solution in communication, instruments, and industrial electronics applications Features:- Ultra compact SIP package Wide input voltage range (2:1) Operating temperature range: -40°C to +85°C Isolation voltage: 1.5K VDC Low ripple & noise Short circuit protection (self-recovery) Remote On/Off EN60950 approval Specifications:- I/p Voltage range:9-18V Nominal voltage:12V O/p voltage:+-12V O/p current:+-125/6mA wattage:3W Isolation:1.5kvdc Package: SIP Package Includes:- 1 x WRA1212S-3WR2 Mornsun 12V to ±12V DC-DC Converter 3W Power Supply Module - Ultra Compact SIP Package Download DATASHEET : Download
