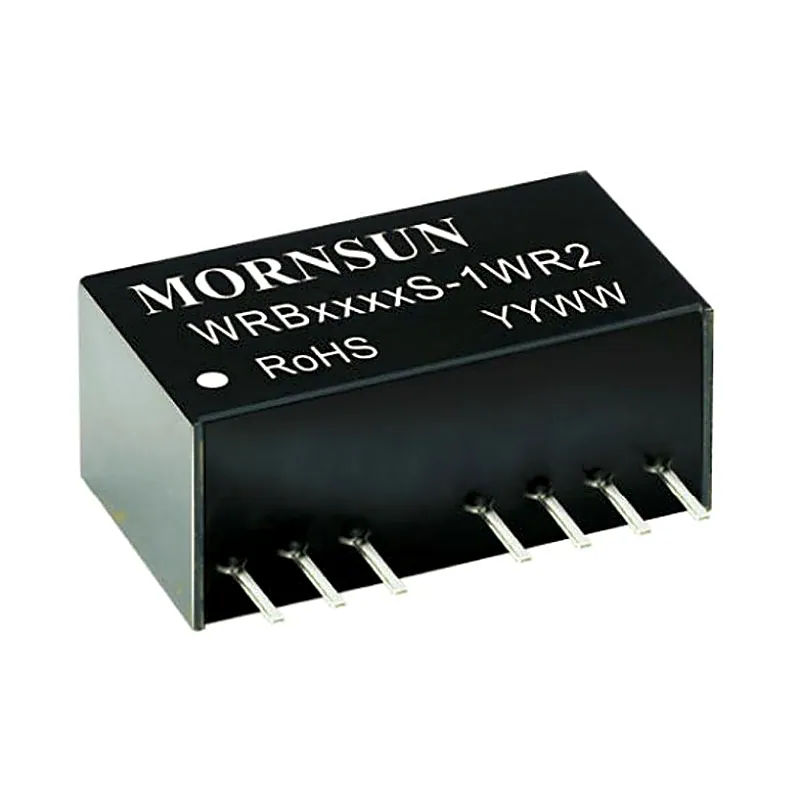

WRB1212S-1WR2 Mornsun 12V to 12V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package

WRB1212S-1WR2 series are isolated 1W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP-8 plastic package, and features high efficiency, operating temperature of -40℃to +85℃, remote control, and continuous short-circuit protection. The smaller size and cost-effective design make the converter an ideal solution in communication, instruments, and industrial electronics applications. Features:- Ultra compact SIP package Wide input voltage range (2:1) Operating temperature range: -40°C to +85°C Isolation voltage: 1.5K VDC Low ripple & noise Short circuit protection (self-recovery) Remote On/Off EN60950 approval Specifications:- I/p Voltage range:9-18V Nominal voltage:12V O/p voltage:12V O/p current:83/4mA wattage:1W Isolation:1.5kvdc Package: SIP Package Includes:- 1 x WRB1212S-1WR2 Mornsun 12V to 12V DC-DC Converter 1W Power Supply Module - Ultra Compact SIP Package Download DATASHEET : Download
