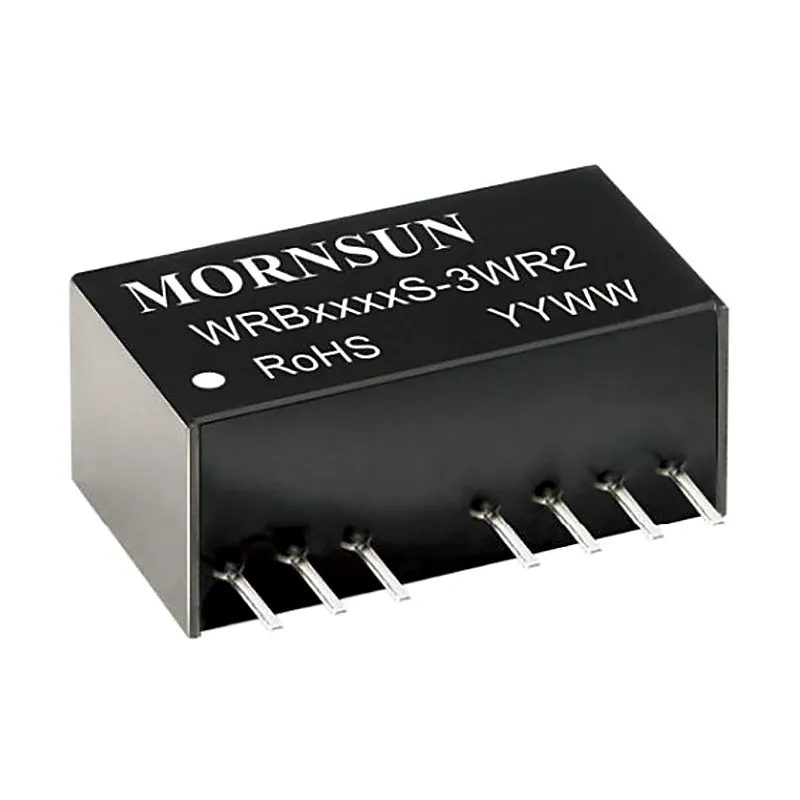

WRB2412S-3WR2 Mornsun 24V to 12V DC-DC Converter 3W Power Supply Module - Ultra Compact SIP Package

WRB2412S-3WR2 series are isolated 3W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP-8 plastic package, and features high efficiency, operating temperature of -40℃to +85℃, remote control, and continuous short-circuit protection. The smaller size and cost-effective design make the converter an ideal solution in communication, instruments, and industrial electronics applications. Features:- Ultra compact SIP package Wide 2:1 input voltage range Operating ambient temperature range: -40℃ to +85℃ I/O isolation test voltage: 1.5K VDC Low output ripple & noise Short circuit protection (self-recovery) Remote On/Off High power density EN60950 approved Specifications:- I/p Voltage range:18-36V Nominal voltage:24V O/p voltage:12V O/p current:250/13mA wattage:3W Isolation:1.5kvdc Package: SIP Package Includes:- 1 x WRB2412S-3WR2 Mornsun 24V to 12V DC-DC Converter 3W Power Supply Module - Ultra Compact SIP Package Download DATASHEET : Download
