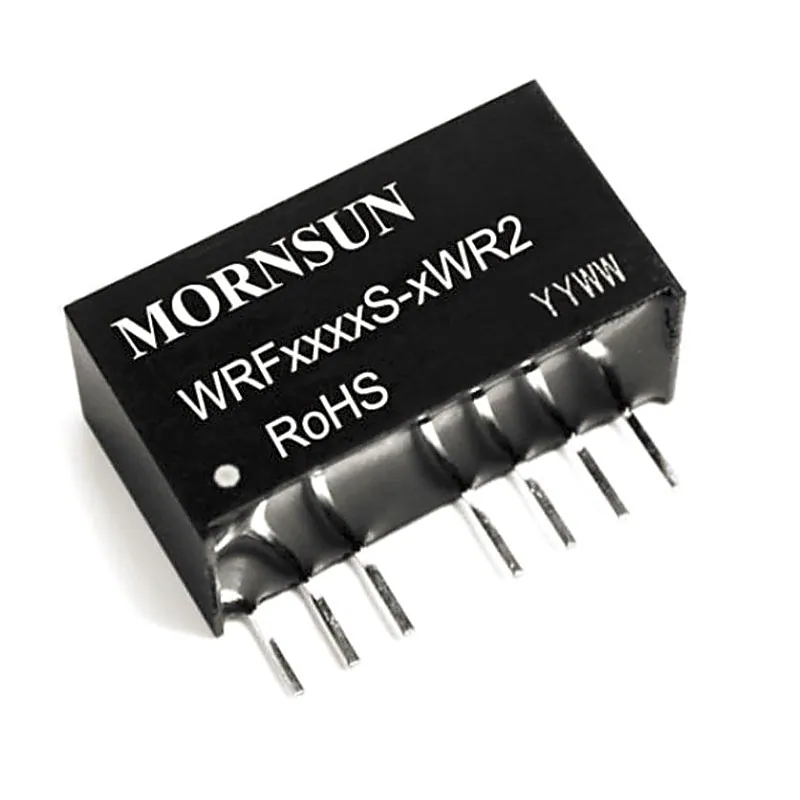

WRF2403S-3WR2 Mornsun 24V to 3.3V DC-DC Converter 3W Power Supply Module - Compact SIP Package
WRF2403S-3WR2 Mornsun 24V to 3.3V DC-DC Converter 3W Power Supply Module - Compact SIP Package
WRB4815S-3WR2 series are isolated 3W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP plastic package, and features high efficiency, operating temperature of -40℃to +85 ℃. The smaller size and fine cost design make the converter an ideal
+ 18% GST (added at checkout)
In stock — 25 units ready
- Compact SIP package
- Wide input voltage range (2:1)
- Operating temperature range: -40℃ to +85℃
- Isolation voltage: 3.0K VDC
- Short circuit protection (self-recovery)
- High power density
- Remote On/Off
- EN60950 approval
- I/p Voltage range:18-36V
- Nominal voltage:24V
- O/p voltage:3.3V
- O/p current:758/38mA
- wattage:3W
- Isolation:3.0kvdc
- Package: SIP
Buying in bulk?
Get volume pricing, GST invoicing and stock availability for larger quantities of this item.
WRB4815S-3WR2 series are isolated 3W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP plastic package, and features high efficiency, operating temperature of -40℃to +85 ℃. The smaller size and fine cost design make the converter an ideal solution in communication, instruments, and industrial electronics applications. Features:- Compact SIP package Wide input voltage range (2:1) Operating temperature range: -40℃ to +85℃ Isolation voltage: 3.0K VDC Short circuit protection (self-recovery) High power density Remote On/Off EN60950 approval Specifications:- I/p Voltage range:18-36V Nominal voltage:24V O/p voltage:3.3V O/p current:758/38mA wattage:3W Isolation:3.0kvdc Package: SIP Package Includes:- 1 x WRF2403S-3WR2 Mornsun 24V to 3.3V DC-DC Converter 3W Power Supply Module - Compact SIP Package Download DATASHEET : Download
