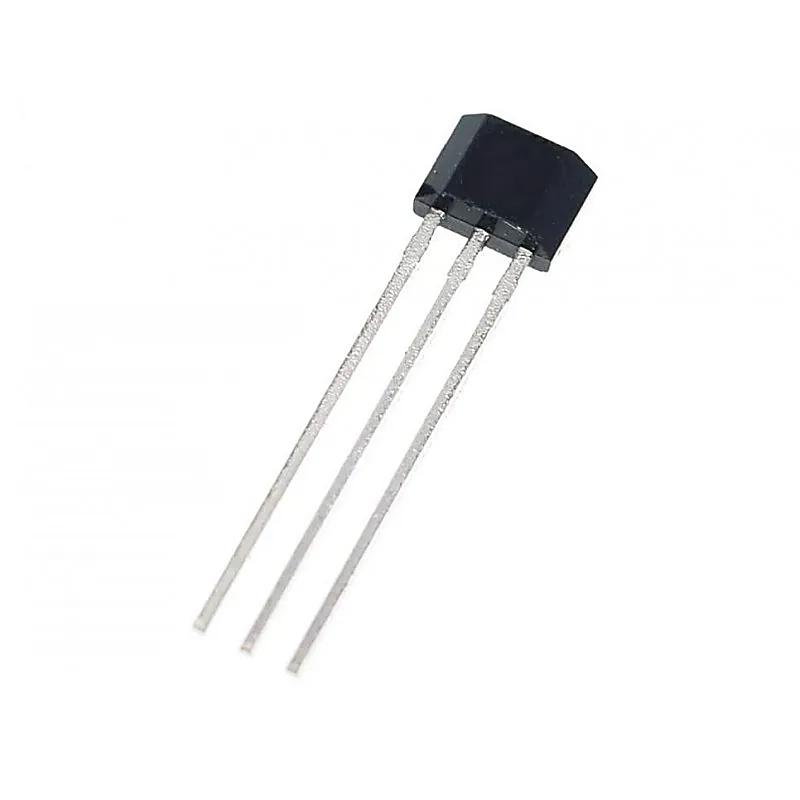

Hall Effect Sensor - Unipolar - WSH130NL

WSH130NL is designed to integrate Hall sensor with output driver together on the same chip, it is suitable for speed measurement, revolution counting, positioning, and contactless switches. It includes a temperature compensated voltage regulator, a differential amplifier, a Hysteresis controller and a open-collector output driver capable of sinking up to 20 mA current load. An on-chip protection resistor is implemented to prevent reverse power fault. The temperature-dependent bias increases the supply voltage of the hall plates and adjusts the switching points to the decreasing induction of magnets at higher temperatures. Subsequently, the output can keep switching on/off on more precise switch point regardless to the ambient temperature. WSH130NL are rated for operation over temperature range from -40℃ to +125℃ and voltage ranges from 2.4 V to 26 V. Features:- Operates from 2.4 V to 26 V supply voltage with reverse voltage protection Operates with magnetic fields from DC to 15 kHz On-chip Hall Sensor On-chip temperature compensation circuitry minimizes shifts in on and off points and hysteresis over temperature and supply voltage Ideal sensor for speed measurement, revolution counting, positioning, and contactless switches On (L) with magnetic South pole and Off (H) without magnetic field or with magnetic North pole Specifications:- Reverse Protection Voltage : 26V Output ON Current (continuous ) : 25mA Operating Temperature Range : -40℃ to +125℃ Storage Temperature Range : -65℃ to +150℃ Package Includes:- 1 x Hall Effect Sensor - Unipolar - WSH130NL
