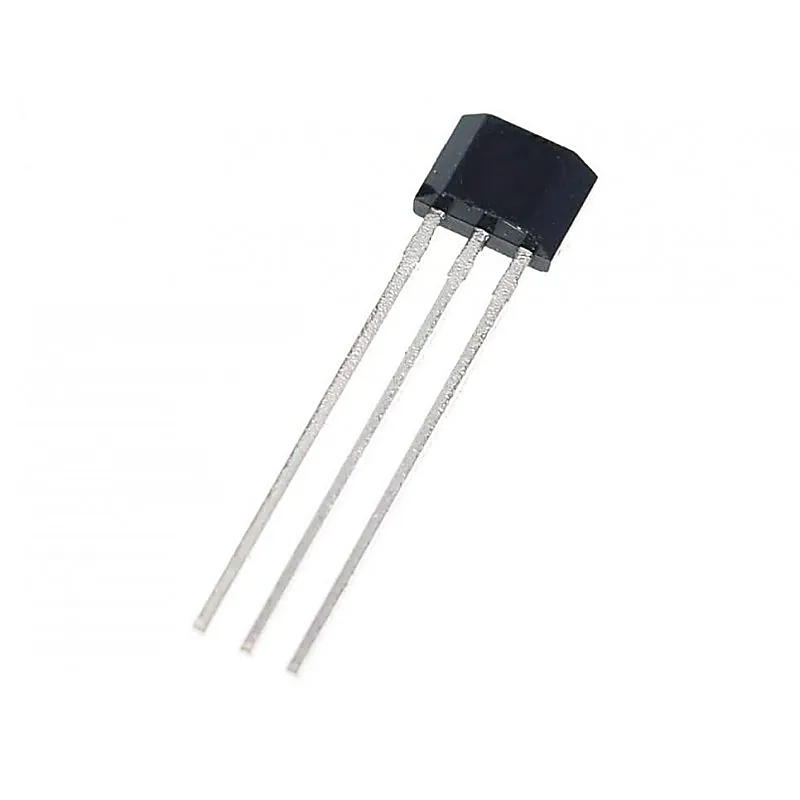

Hall Effect Sensor - Linear - WSH49E

The WSH49E integrates Hall sensing element, linear amplifier, sensitivity controller and emitter follower output stage. It accurately tracks extremely small change in magnetic flux density –generally too small to operate Hall effect switch. WSH49E can be applied as current sensor, tooth sensor, proximity detectors and motion detectors. As sensitive monitor of magnetic flux, it can effectively measure a system’s performance with negligible system loading while providing isolation from contaminated and electrically noisy environments. Features:- Wide operating range 3.0~6.5V, -20℃~100℃ Flat Response to 23kHz Low noise output Wide sensible magnetic field range on different supplied voltage ±900 Guass on 5V supplied voltage. Specifications:- Supply Voltage : 7V Output Driving Current : 5mA Operating Temperature Range : -20℃ to +100℃ Storage Temperature Range : -65℃ to +150℃ Package Includes:- 1 x Hall Effect Sensor - Linear - WSH49E
