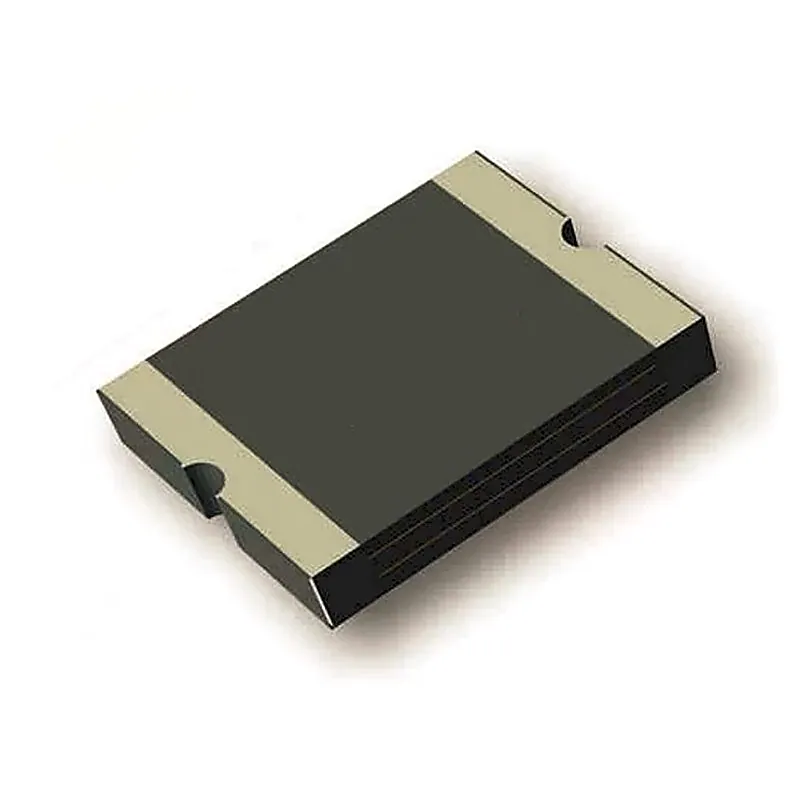

WT1206-110/16 16V 1.1A Weite (1206 SMD) PPTC Resettable Fuse

PPTC ((Polymer Positive Temperature Coefficient) Fuse 16V 1.1A Amp is PPTC devices with resettable overcurrent protection. Using this reduces the warranty, service and repair costs. This PPTC Fuses are ideal for situations where frequent overcurrent conditions occur or constant uptime is required, resettable PTCs (PPTCs) are typically used in consumer electronics, power line, telecom, I/O port, process control and medical equipment protection applications. PPTC Fuse increase resistance as temperature increases due to increased flow. They are Designed to limit unsafe currents while allowing constant safe current levels, resistance will “reset” automatically when the fault is removed and temperature returns to a safe levels. Features:- Compact design saves board space RoHS compliant and lead-free Halogen-free Fast response to fault current Symmetrical design Applications:- USB port protection - USB 2.0, 3.0&OTG HDMI 1.4 Source protection PDAs / digital cameras Game console port protection PC motherboards-plug and play protection Specification:- Brand : WEITE Resettable PPTC Fuse Hold Current: 1.1A Maximum Voltage: 16V Mounting Type: SMD 1206 Fuse Type : SMD Package Includes:- 1 x WT1206-110/16 16V 1.1A Weite (1206 SMD) PPTC Resettable Fuse
