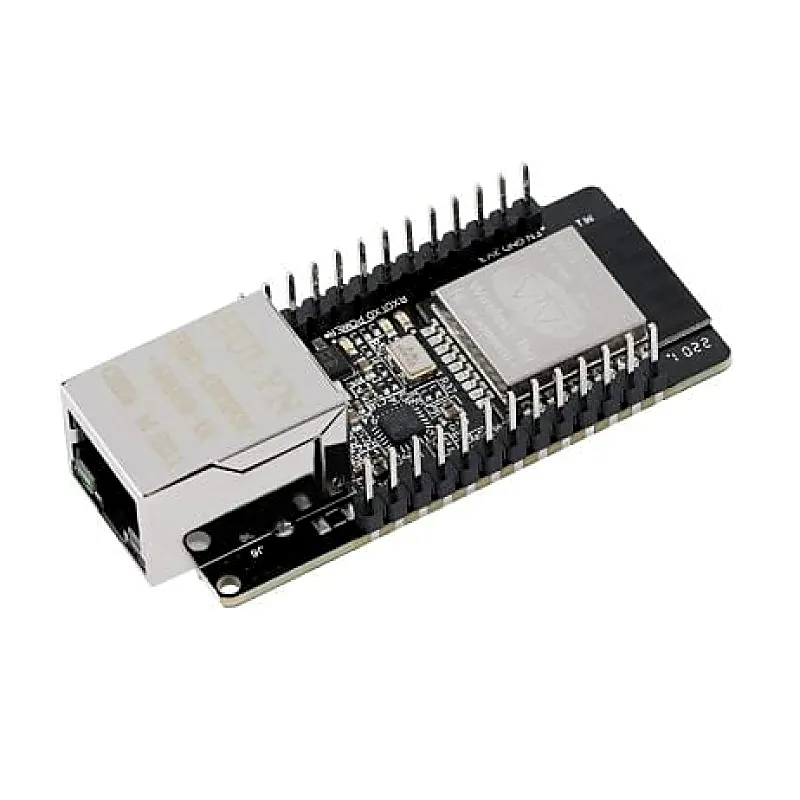

WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth

WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth is an embedded serial port to Ethernet module designed by Wireless-tag company based on ESP32 chipset, The module integrates the optimized TCP/IP protocol stack, which is convenient for users to complete the networking function of embedded devices , and greatly reduces the cost of development time. In addition, the module is compatible with the semi-welding disk and connector through hole design, the plate width is a general width, the module can be welded directly on the board, providing trust to your potential users. Features: Easy to use Easy to interface Good quality product Used for Home automation, Smart home control panel can also be used in Wearable electronics Specifications: Operating voltage : 5V, 3.3V Model Name : WT32-ETH01 RAM Memory Installed Size : 4 MB Processor Speed : 2.4 GHz Hardware Interface : Bluetooth Connector Type : Wi-Fi Industrial operating temperature range : -40C -+85C Serial port baud rate : 80-5000000 Network protocols : IPv4,TCP/UDP Software encryption : AES/RSA/ECC/SHA The product has passed FCC/CE/RoHS standard certification Wi-Fi Protocol : 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps); A-MPDU and A-MSDU aggregation, support 0.4_s guard interval Bluetooth Protocol: Compliant with Bluetooth v4.2 BR/EDR and BLE standards Package Includes: 1 x WT32-ETH01 V1.2 Serial to Ethernet Module Gateway Module with WiFi +Bluetooth
