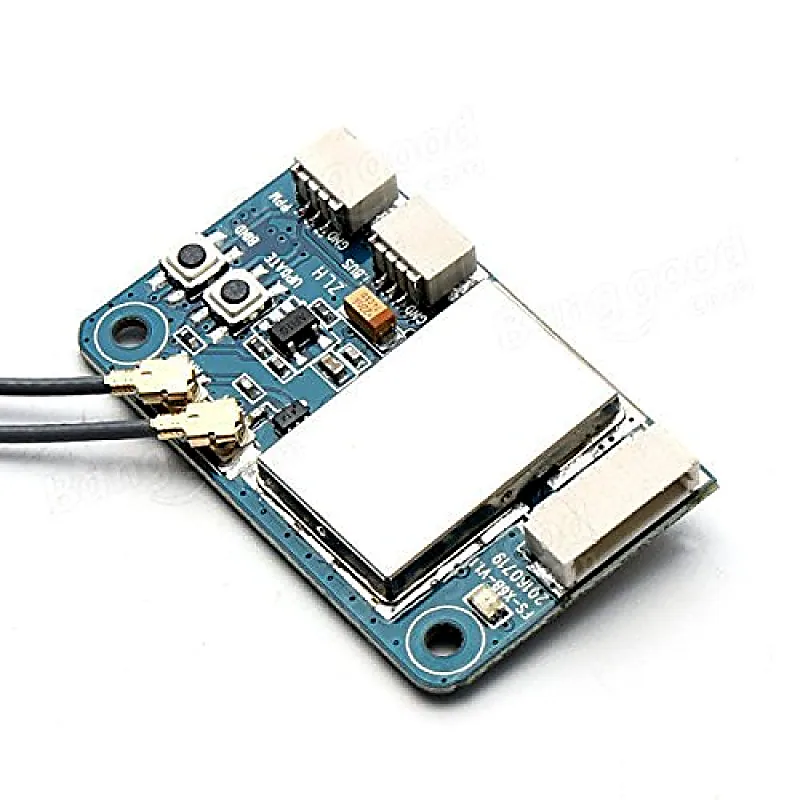

X6B 2.4G 6CH i-BUS PPM PWM Receiver for AFHDS

The X6B 2.4G 6CH i-BUS PPM PWM Receiver for AFHDS is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques. Its compact, easy to install and boasts a rich easy to use interface. The FS-X6B support 6 channel PWM output, standard PPM output, and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface. Voltage detection interface can be used to detect the external power supply voltage and can be connected to 1S-4S power supply, the input range of 0-18V. Its 2.4G system for AFHDS double omnidirectional antenna prevents signal interference with superior noise reduction techniques. Also, X6B supports 3 kinds of signal output,6 channel PWM output,8 channel PPM output, and 18 channel i-BUS output. Caution: Do not connect the receiver with excessive current. Features: Model Type: Multi-Rotor No more than 20 dBmRF Power AFHDS 2A- 4GHz protocol Low voltage alarm PPM/PWM/i-BUSDSC port Power input: 4.0-8.4VOn-line Update Compatible Transmitter: All AFHDS 2A Transmitter, for example, FS-i10 FS-i6, FS-i6S, FS-i6X, FS-i4, FS-i4X. Package includes: 1 x Flysky X6B 2.4G 6CH i-BUS PPM PWM Receiver with Dual Antenna 3 x Signal Cable for Voltage Sensor, PPM, and i-Bus port 1 x Signal Cable for PWM Port Specifications :- Model X6B 2.4G 6CH No. of Channels 6(PWM), 8(PPM), 18(i-BUS) RF Range 2.408-2.475 GHz Rx Sensitivity (dBm) -95 Band Width 500KHz Modulation Type GFSK Stick resolution 1024 Operating Voltage (VDC) 3.3 ~ 5V Current Consumption (mA) 30 Control Distance 300m i-Bus Interface Yes Antenna Length (mm) 93 Color Blue Net weight (gm) 4 Dimensions (mm) LxWxH 36 x 22 x 7.5
