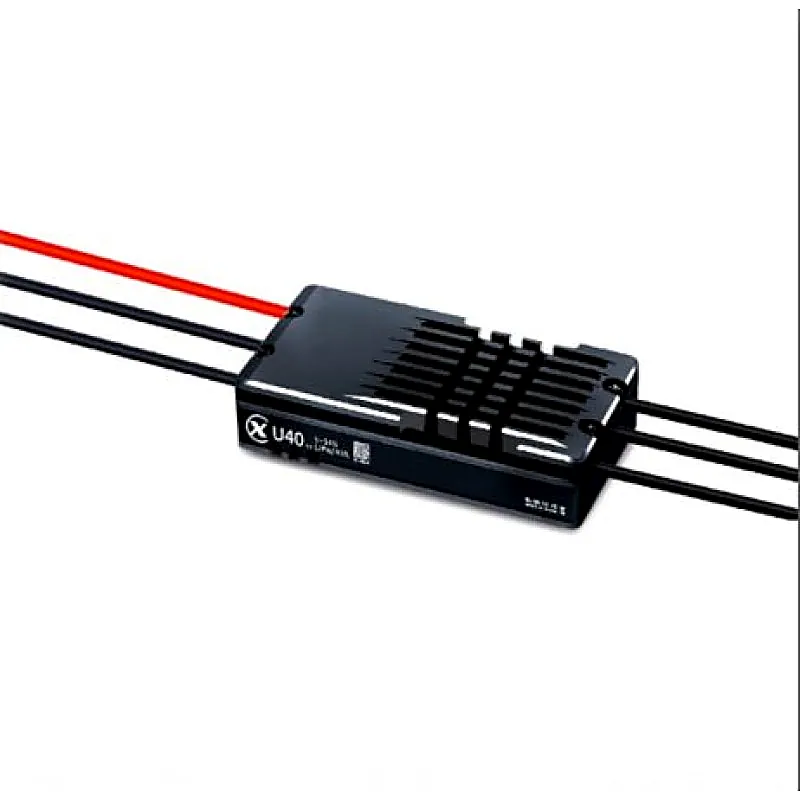

XC ESC 12s 40A 48V 3HP Brushless DC Motor Electric Speed Controller

The U40 V2 is a compact and efficient Brushless DC Motor Electric Speed Controller designed for various applications, supporting 5 to 14S LiPo batteries. With a continuous current rating of 40A and an instantaneous current capability of 60A, this ESC is optimized for performance under good cooling conditions. Brushless DC Motor Electric Speed Controller features a throttle pulse width range of 1050us to 1940us, making it compatible with both 3.3V and 5V input signals. Features: Compact Design: Lightweight at approximately 37g, ideal for space-constrained applications. Protection Rating: IPX4 rated for resistance against water and dust. Wide Operating Range: Functions effectively in temperatures from -25 to 60C. Signal Frequency: Supports a frequency range of 50-500Hz. Specifications: Type: Brushless DC (BLDC) Motor Controller Continuous Current: 40A (under good cooling conditions) Instantaneous Current: 60A Input Voltage: 5~14S LiPo BEC: None PWM Input Signal Voltage: 3.3V/5V (compatible) Throttle Pulse Width: 1050us 1940 us Compatible Signal Frequency: 50 500 Hz Package include: 1 x XC ESC 12s 40A 48V 3HP Brushless DC Motor Electric Speed Controller
