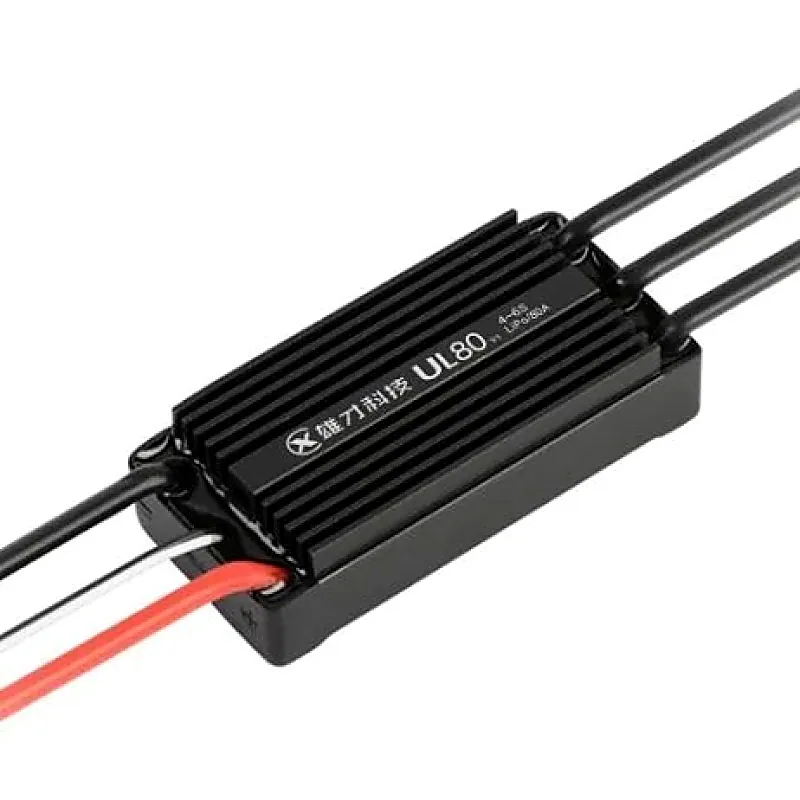

XC ESC 12s 80A 48V Fpv BLDC Motor Electric Speed Controller

The U80 V2 is a robust Brushless Fpv BLDC Motor motor speed controller designed for high-performance applications, supporting 5 to 14S LiPo batteries. With a continuous current rating of 80A and a peak current capability of 120A, it is engineered for optimal performance under good cooling conditions. The ESC Fpv BLDC Motor features a throttle pulse width range of 1050us to 1940us, making it compatible with both 3.3V and 5V input signals. Features: High Protection Grade: IP67 rated with glue filling for superior water and dust resistance. Durable Design: Built to withstand harsh conditions while maintaining reliability. Wide Operating Range: Functions effectively in temperatures from -25C to 60C. Versatile Connections: Supports compatible signal frequencies from 50 to 500Hz. Specifications: Type: Brushless DC (BLDC) Motor Controller Continuous Current: 80A (under good cooling conditions) Instantaneous Current: 120A Input Voltage: 5~14S LiPo BEC: None PWM Input Signal Voltage: 3.3V/5V (compatible) Throttle Pulse Width: 1050us 1940us Compatible Signal Frequency: 50 500Hz Weight: 90g (excluding wires) Power/Motor Lines: 12/14 AWG Protective Grade: IP67 (glue filling for water and dust resistance) Working Temperature: -25C to 60C Package include: 1 x XC ESC 12s 80A 48V Fpv BLDC Motor Electric Speed Controller
