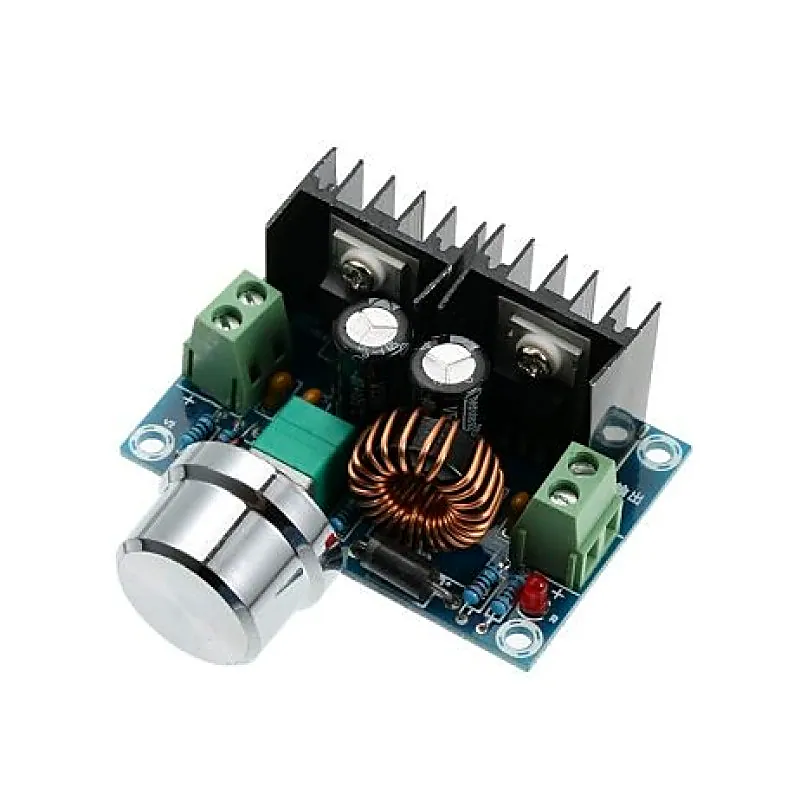

XH-M401 DC-DC Step Down Buck Converter Power Supply Module XL4016E1

The XL4016 is a 180 kHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 12A load with high efficiency, low ripple, and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An overcurrent protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count. Note: This Product is available in two different variants (XH-M401 and HW 674) with the same working, we will ship it randomly. Applications: LCD Monitor and LCD TV Portable instrument power supply Telecom / Networking Equipment Features: Wide 8V to 36V Input Voltage Range Output Adjustable from 1.25V to 32V High efficiency up to 96% Built-in thermal shutdown function Built-in current limit function Built-in output short protection function Excellent line and load regulation Package Includes: 1 x XH-M401 DC-DC Step-Down Buck Converter Power Supply Module Specifications: Input Voltage (V) 8-36VDC Output Voltage(V) 1.25 to 36 Max. Output Current (Amp) 8 Conversion Efficiency 96% Switching Frequency 180 KHz Load Regulation ±0.5% Voltage Regulation ±0.5% PCB Size ( L x W ) mm 40 x 65
